1/2" NPT Combination Pilot, Unloader, Check Valve plus Throttle Control Cable for 8HP - 13 HP Gas air Compressors and Below (140-175 PSI, 12" Throttle Control Cable & Unloader Valve)
US$161.98
Arrives as soon as ✓ Free shipping over $200Description
Product Details Size: 140-175 PSI Unit Count: 1 Count Number of Packs: 1 Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE Material Type: Brass, Stainless Steel Exterior Finish: Brass, St...
Delivery & Returns
Free shipping over $200
Orders of $200 or more ship free. No code needed.
Reviews
Autzen
Find Autzen on ShopTap to open the Shop app
Follow us →
You might also like
Happybuy
Vevor Air Compressor Pump 3HP 11.8CFM, 115PSI Single Stage Twin Cylinder Aluminum Air Compressor Head Piston Style Splash Lubrication Pump : Tools & Home Improvement
US$233.98
HITY MOTOR
New (OEM) PS2020M ROLAIR Air Compressor Pressure Switch 135/105 psi D075HPV5(LP), D1500HPV5(LP), OD1500HPV5
US$210.60
VEVOR
VEVOR Air Compressor Pump Head, 3HP 5.8CFM @ 90PSI, Twin Cylinder Oil Lubricated Air Compressor Piston Pump Head, Single-Stage Aluminum Replacement with Max. 116PSI Pressure
US$178.81
VEVOR
VEVOR Air Compressor Pump Head,5.5HP 5.75CFM @ 90PSI,Twin Cylinder Oil Lubricated Air Compressor Piston Pump Head, Dual Stage V-Type Cast Iron Replacement with Max. 185PSI Pressure
US$338.22
compressor-source
2-3 HP Replacement Air Compressor Pump Single Stage 2-Cylinder 7 CFM Compressor Source CS2065A
US$305.98
Vdapavin
PCP Air Compressor Replacement Cylinder, 12 VDC/120 VAC，Compatible with PCP air pumps， high-pressure compressors，PCP compressors，airgun compressors
US$136.78
Autzen
(GB) New REG0375 ROLAIR Air Compressor Regulator + full model list in the description
US$126.00
Ei
Hitachi Pilot Unloader Check valve Combo for Gas Compressors 885426 EC2510E
US$124.18
Dreyoo
Dreyoo Air Compressor Pressure Switch, 120-155 PSI, 4 Port, 20 Amp, 1/4 NPT
US$50.38
Dreyoo
Dreyoo Air Compressor Pressure Switch,135-175 PSI, 4 Port, 20 Amp, 1/4 NPT
US$53.98
PRO
1/2" NPT Combination Pilot Valve, Unloader Valve, Check Valve plus Throttle Control Cable for 8HP - 13 HP Gas air Compressors and Below (140-175 PSI, 36" Throttle Control Cable & Unloader Valve)
US$167.38
conrader
Air Compressor Pilot Unloader Valve compatible/replacement 5131609-00 95-125
US$80.35
More options
Product Details
- Size: 140-175 PSI
- Unit Count: 1 Count
- Number of Packs: 1
- Manufacturer Part Number: NG1-M W/ OPTIONAL THROTTLE
- Material Type: Brass, Stainless Steel
- Exterior Finish: Brass, Stainless Steel
- Inlet Connection Type: National Pipe Tapered
- Outlet Connection Type: NPT THREADING
- Maximum Pressure: 500 psi
- Number of Ports: 2
- Thread Size: 1/2 inch
- Thread Type: NPT
- Valve Type: check valve, unloader valve
- Inlet Connection Size: 1/2 NPT inches
- Outlet Connection Size: 1/2 NPT inches
About this item

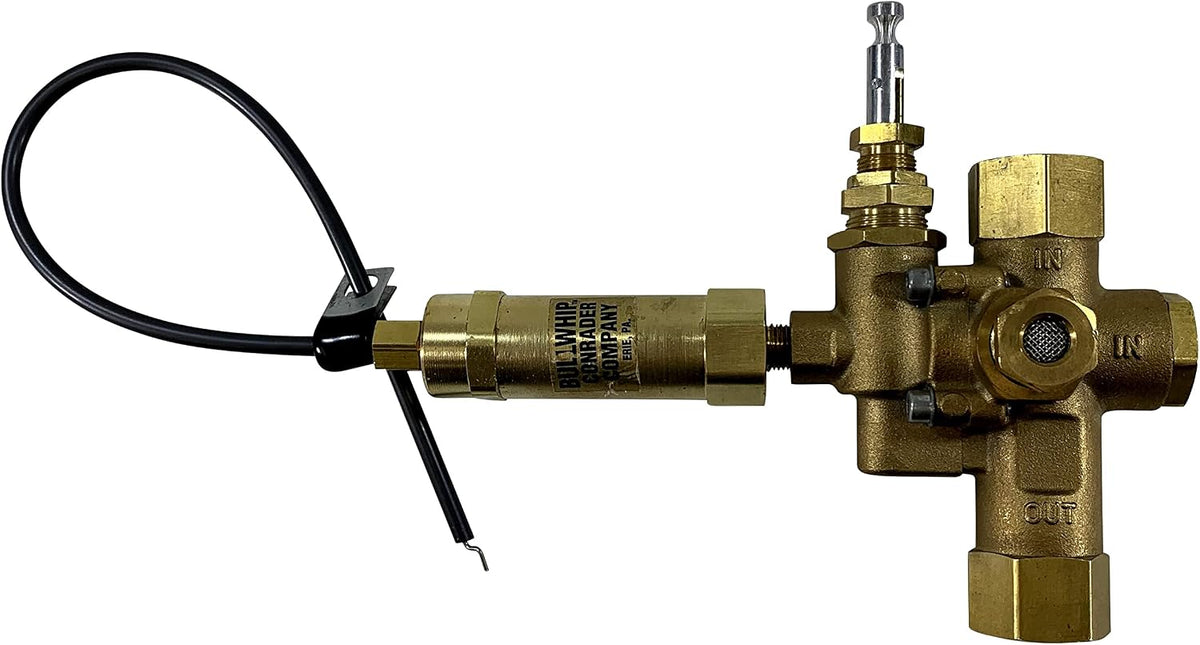

- 1/2" Female NPT Inlet / Outlet, Combination pilot valve, check valve, unloader valve all-in-one for 8HP - 13HP Gas Powered Air Compressor Engines and Below.
- Throttle Control: For Throttle Control Cable Variation option, please select your Throttle Control Cable OAL (Overall length) from the Variation options above.
- Unloader Valve PSI Options: Please select your ON/OFF PSI Rating on the Unloader Valve from the variations above. The Lower Pressure ON position, the unloader will relay to the engine through the throttle control that its time to cycle ON. The Higher Pressure OFF position, the unloader valve will relay to the engine through the throttle control that its time to Idle OFF. If you already have a Throttle Control Mechanism, simply select the " Valve ONLY " Variation option.

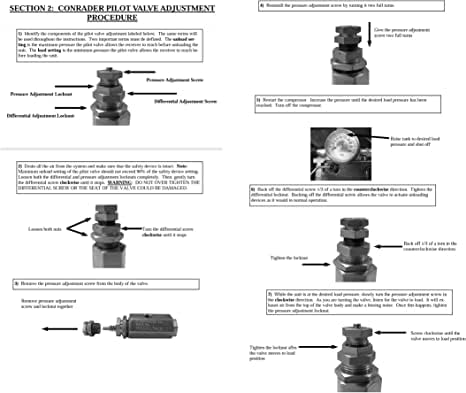

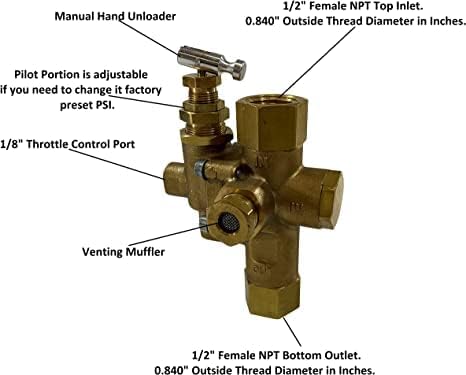

- Please see our break down sheet shown in our pics for details regarding each connection port.

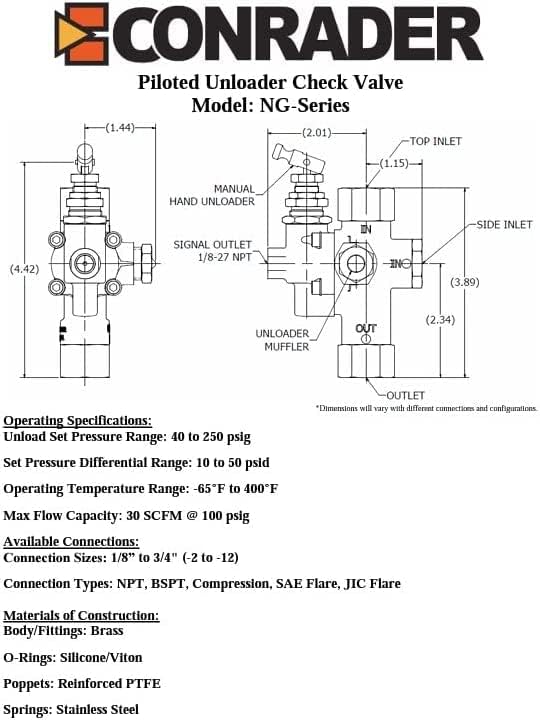

- Unloader Valve: 30 CFM Flow Rate, Pressure differential 10 to 50 psi, operating temp -65f to 400f max. All brass construction and built for the rigors of outdoor gas compressors. Manual hand unloader toggle and brass venting muffler included.

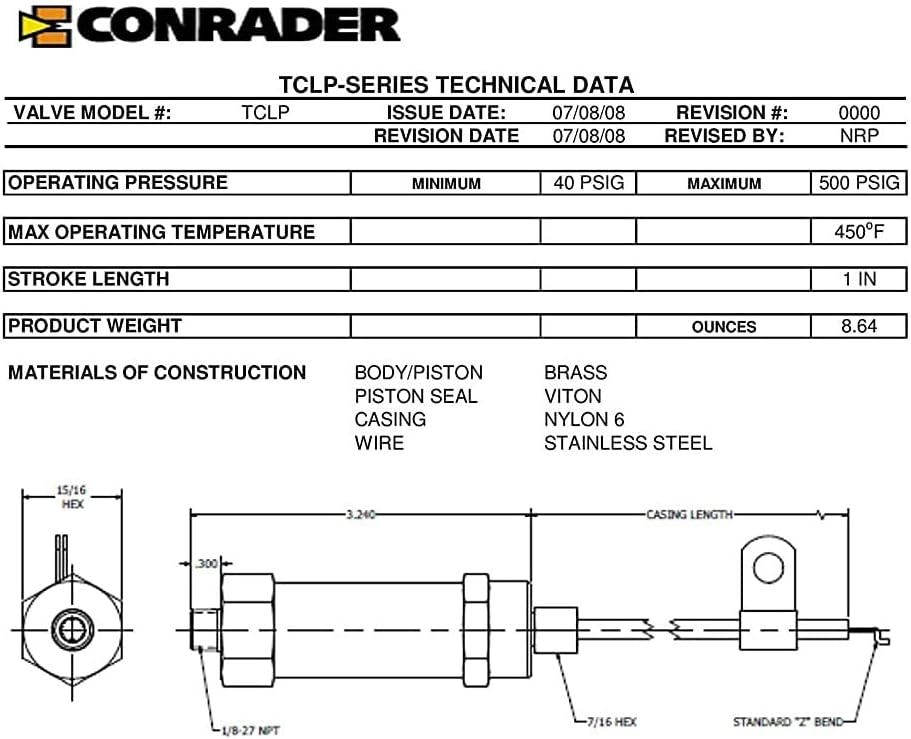

- Throttle Control Cable: The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle. Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable. Min. Pressure 80 PSI, Max Operating Pressure 500 PSI, Retracted Spring Force: 16.89 lbf, Stroke Length: 1.00 inch.
