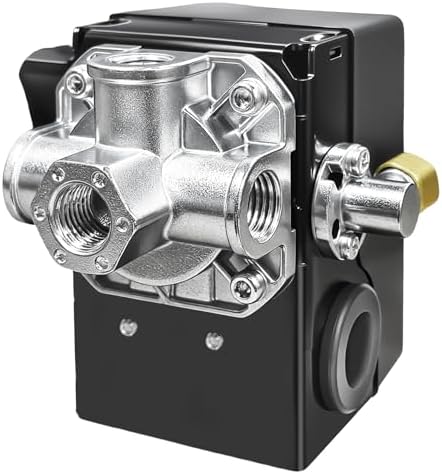

23474570 pressure switch two stage compressor 5-7.5 hp, main product view

23474570 Pressure Switch Two Stage Compressor 5-7.5 HP 135-175 PSI

$61.85
$61.85
Skip to product information
23474570 pressure switch two stage compressor 5-7.5 hp, main product view
1/8
  • 23474570 pressure switch two stage compressor 5-7.5 hp, main product view
  • 23474570 pressure switch two stage compressor 5-7.5 hp shown in use
  • 23474570 pressure switch two stage compressor 5-7.5 hp, close-up detail
  • 23474570 pressure switch two stage compressor 5-7.5 hp, side view
  • 23474570 pressure switch two stage compressor 5-7.5 hp showing dimensions
  • 23474570 pressure switch two stage compressor 5-7.5 hp, package contents
  • 23474570 pressure switch two stage compressor 5-7.5 hp on a desk or shelf
  • 23474570 pressure switch two stage compressor 5-7.5 hp, front angle view
  • 23474570 pressure switch two stage compressor 5-7.5 hp, main product view
  • 23474570 pressure switch two stage compressor 5-7.5 hp shown in use
  • 23474570 pressure switch two stage compressor 5-7.5 hp, close-up detail
  • 23474570 pressure switch two stage compressor 5-7.5 hp, side view
  • 23474570 pressure switch two stage compressor 5-7.5 hp showing dimensions
  • 23474570 pressure switch two stage compressor 5-7.5 hp, package contents
  • 23474570 pressure switch two stage compressor 5-7.5 hp on a desk or shelf
  • 23474570 pressure switch two stage compressor 5-7.5 hp, front angle view
23474570 Pressure Switch Two Stage Compressor 5-7.5 HP 135-175 PSI

23474570 Pressure Switch Two Stage Compressor 5-7.5 HP 135-175 PSI

$61.85
$61.85
Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Description

Product Details

  • Color: Black
  • Item Weight: 14 ounces
  • Voltage: 220 volts
  • Power Source: ac
  • Included Components: Air Compressor Pressure Switch
  • Number of Items: 1
  • Unit Count: 1 Count
  • Model Name: Air Compressor Pressure Switch
  • Model Number: 23474570
  • Recommended Uses For Product: Powering Pneumatic Tools, Operating Spray Painting Equipment, Running Air-Powered Machinery
  • Maximum Power: 7.5 hp
  • Maximum Horsepower: 7.5 hp
  • Maximum Pressure: 175 psi

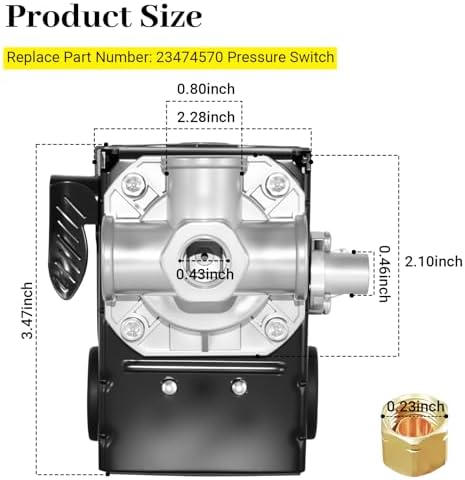

  • Item Dimensions L x W x H: 4.32"L x 3.85"W x 3.82"H
  • Material Type: Alloy Steel, Aluminum
  • Item Highlight: for Ingersoll Rand Air Compressor 2475 2545 2340 7100 with Unloader and 4 Port On/Off Lever
  • Number of Packs: 1
  • Manufacturer Part Number: AWD0001

About this item

  • Part Number: 23474570 Pressure Switch Replacement - for Ingersoll Rand Reciprocating Air Compressors Package Contains: 1 Pressure Switch

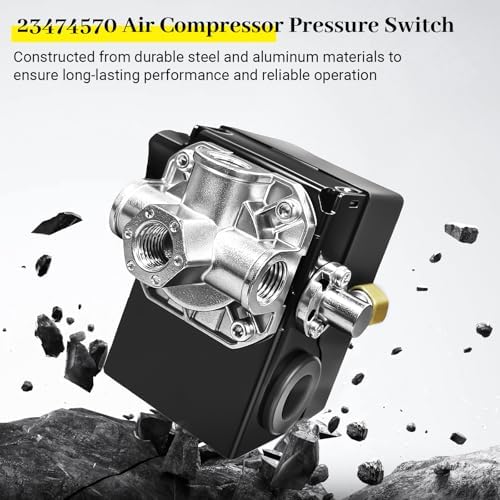

  • Durable materials: The air compressor pressure switch is made of high quality steel and aluminum for durability and long service life.

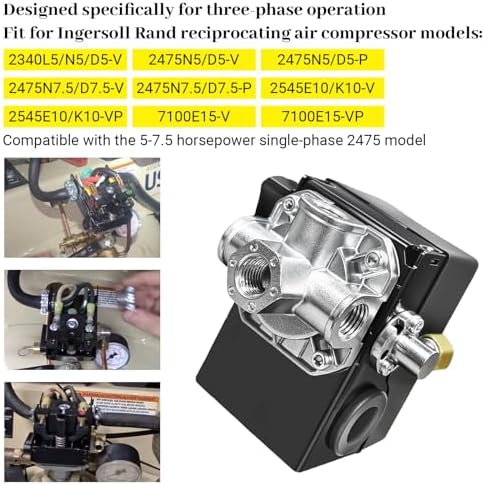

  • Applicable Models: The air compressor pressure switch fits most three-phase Ingersoll Rand reciprocating air compressor models as follows: 2340L5/N5/D5-V, 2475N5/D5-V, 2475N5/D5-P, 2475N7.5/D7.5-V, 2475N7.5/D7.5-P, 2545E10/K10-V, 2545E10/K10-VP, 7100E15-V, and 7100E15-VP are compatible with 5-7.5 HP single-phase 2475 models.
  • When to Replace: If the air compressor pressure switch fails to activate at a lower set point or fails to close at a higher pressure set point, causing the safety valve on the tank to pop off, the pressure switch usually needs to be replaced.

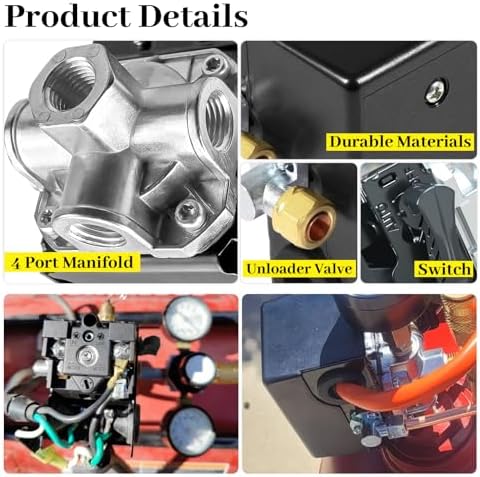

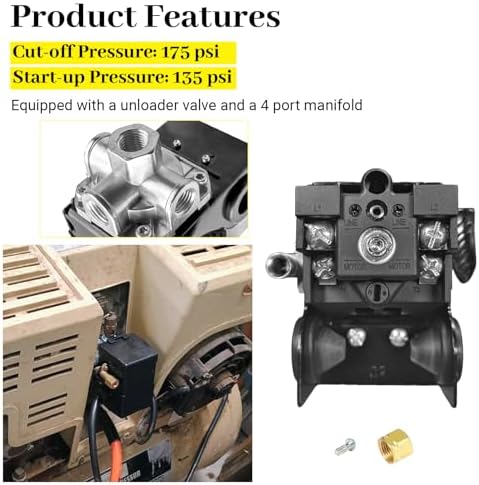

  • Product Features: Air compressor pressure switch has a cutoff pressure of 175 psi and a preset cut-in pressure of 135 psi. equipped with an unloading valve and 4-way manifold for easy installation and maintenance.

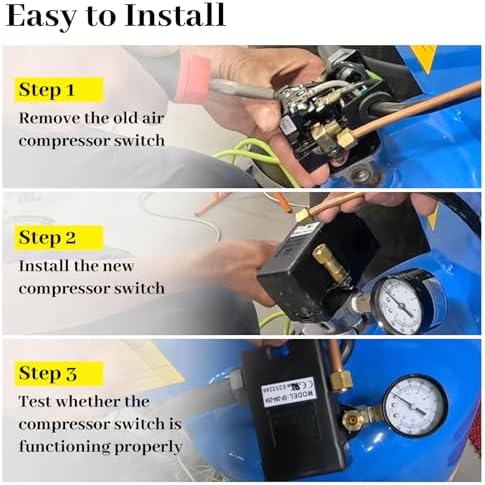

  • Easy to install: when the compressor pressure switch is damaged, just put the new replacement parts into the designated location, the operation is simple, convenient and fast.
