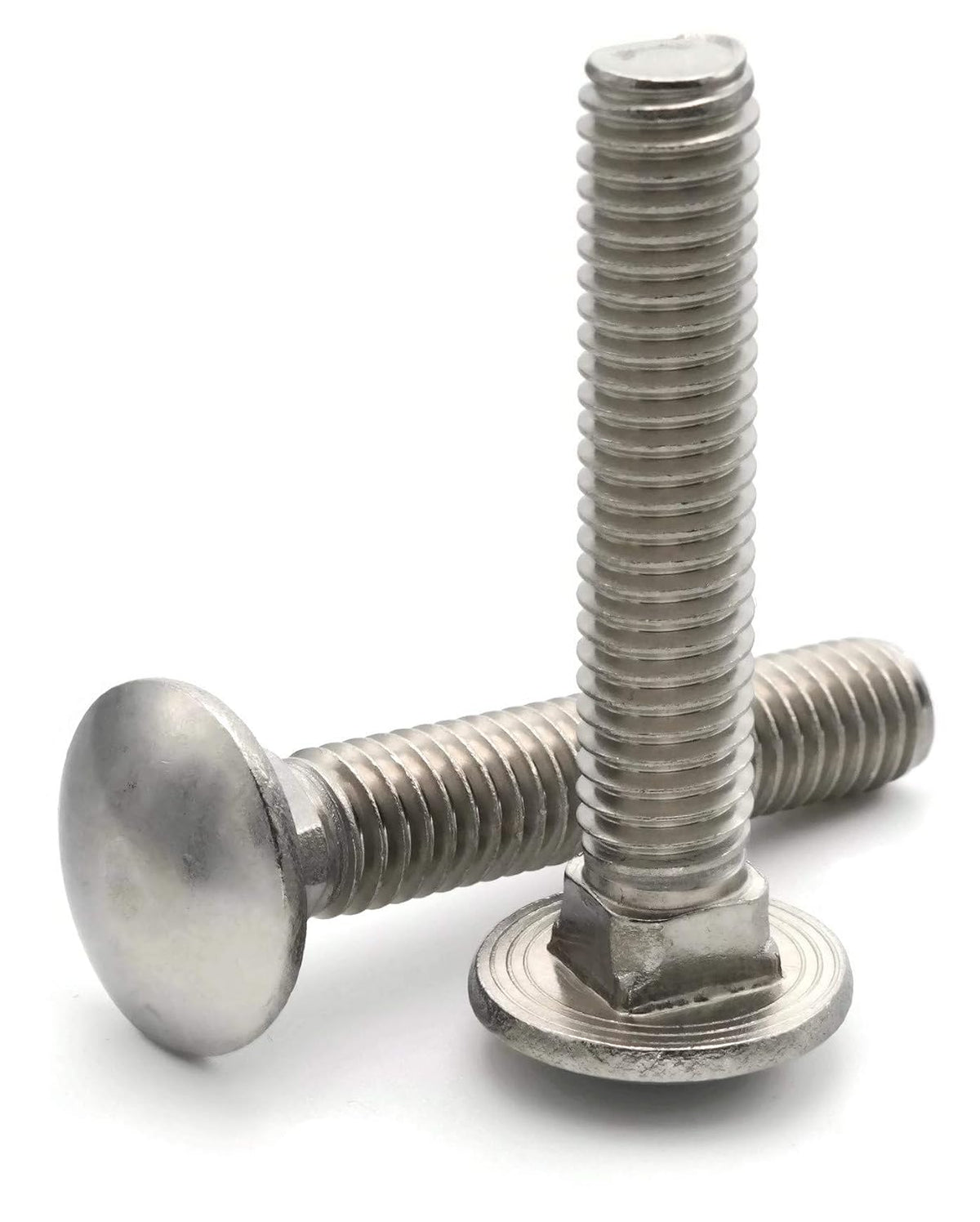

Carriage Bolt 18-8 Stainless Steel #10-24 x 1-3/4" Qty-25

Product Details

• Color: Silver
• Item Weight: 5.6 ounces
• Number of Items: 25
• Unit Count: 1 Count
• Part Number: 717029204141
• Thread Size: #10-24
• Exterior Finish: Plain
• Manufacturer Grade: Grade 8 8
• Screw Head Style: Domed
• Fastener Type: Carriage Bolt
• Thread Type: Unc
• Thread Style: Right Hand
• Item Hardness: Grade 5
• Head Type: Carriage
• Thread Class: 1B
• Screw Point Style: Machine
• Compatible Groove Diameter: 1.75 inches
• Drive System: Square
• Grade Rating: Grade 5
• Material Type: Stainless Steel
• Metal Type: Stainless Steel
• Finish Types: Plain
• Size Name: #10-24 x 1-3/4"
• Number of Pieces: 25
• Fastener Size: #10-24 x 1-3/4"
• Thread Coverage: Coarse
• Set Name: Stainless Steel Carriage Bolt Set (25 Piece)
• Model: 717029204141

About this item

• A carriage bolt has a domed or countersunk head and the shank is topped by a short square section under the head of the bolt.
• The square section grips into the part being fixed, preventing the bolt from turning when the nut is tightened.
• Carriage bolts are often used to fasten wood panels or board to masonry or to one another.
• The square shank of the bolt allows it to lock into place when inserted into a round hole in wood or a square hole in a metal strap, the unthreaded square shank pulls into the wood creating a tight connection.
• 18-8 Stainless steel is corrosion and rust resistant. 18-8 Stainless steel is considered the fastener industry standard.
