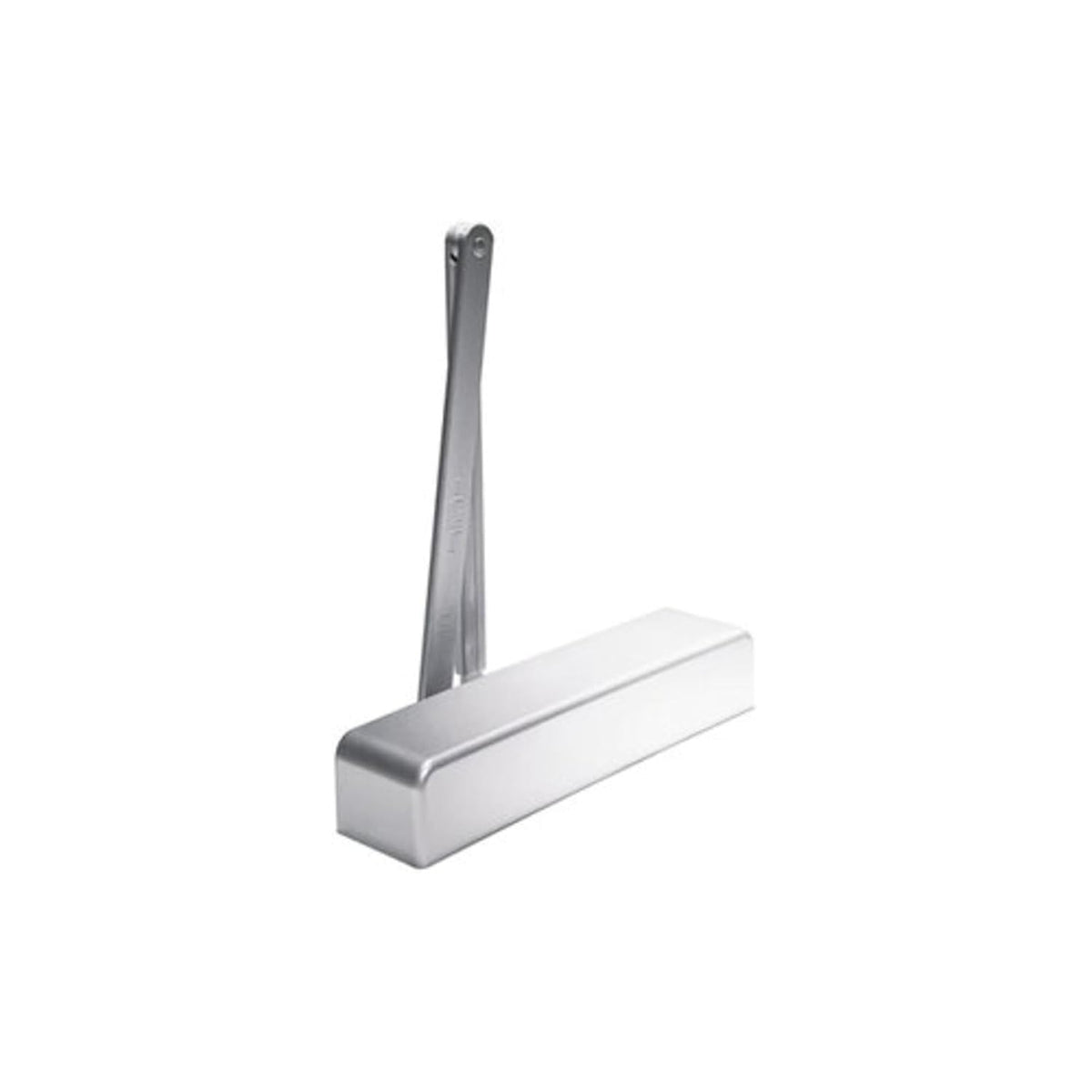

Dorma 8916 AF89P 689 Aluminum Painted Heavy-Duty Architectural Grade Door Closer for Institutional/High-Traffic Applications with Tri-Packed Standard Arm for Regular, Top Jamb and Parallel Arm Mount

Product Details

• Color: Silver
• Size: 4
• Item Weight: 3.85 kg
• Number of Items: 1
• Unit Count: 1 Count
• Model Number: 8916 AF89P 689
• Number of Packs: 1
• Manufacturer Part Number: 8916 AF89P 689
• Installation Type: Screw-In
• Recommended Uses For Product: Institutional/High-traffic applications, vandalism-prone areas
• Item Dimensions L x W x H: 96"L x 42"W x 96"H
• Material Type: Aluminum
• Exterior Finish: Aluminum

About this item

• Can be used on doors that weigh up to 180 pounds, measure up to 96 inches in height and up to 48 inches in width on interior doors and 42 inches width on exterior doors.
• Parallel arm mount - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware projecting beyond the frame face (in most situations).
• Package includes: body, full cover, mounting hardware, Tri-Packed standard arm for regular, top jamb and parallel arm mount, instructions and full size templates in multiple languages
• Adjustable backcheck with positioning adjustment. Two adjustment valves to control sweep-speed and latch-speed and adjustable spring size 1-6, shipped as size 4. All valves are accessible when the closer is installed
• Forged steel main arm hub, corrosion-resistant, high-strength aluminum housing. Hardened pinion/piston - 25 year limited warranty
