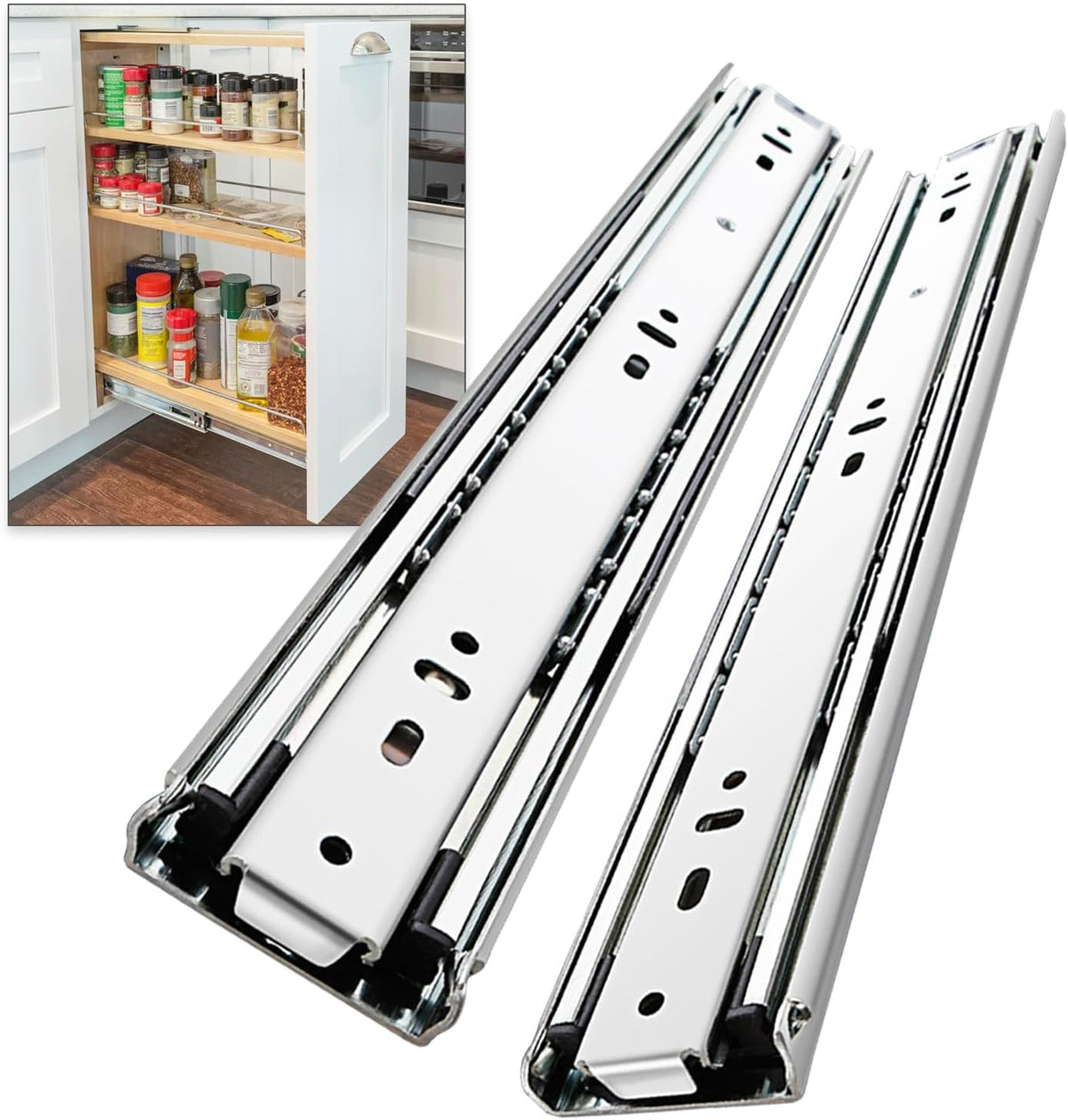

Heavy Duty Drawer Slides Full Extension Runners 150 lbs 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 Inch Side Mount Rails for Drawer Capacity 150 lb 1 Pair

Product Details

• Color: Silver
• Mounting Type: Side Mount
• Included Components: one pair of heavy duty drawer slides
• Number of Items: 2
• Unit Count: 2 Count
• Model Number: Without lock
• Number of Packs: 1
• Manufacturer Part Number: Without lock
• Material Type: High-strength Steel
• Item Dimensions L x W x Thickness: 14"L x 0.5"W x 2.01"Th
• Finish Types: galvanized
• Maximum Weight Capacity: 150 pounds
• Drawer Type: Side Mount

About this item

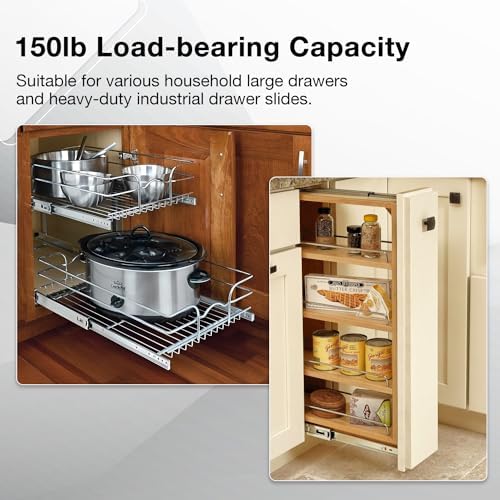

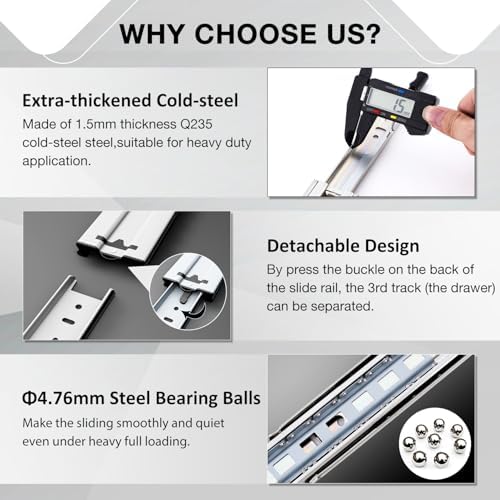

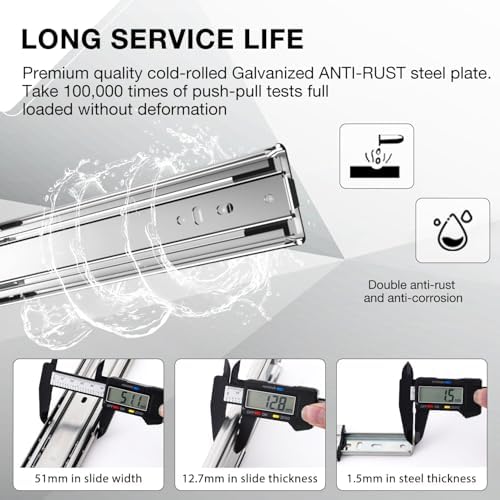

• 【Heavy Load capacity up to 150 lb】 The drawer slides is made of high-density high-strength Q235 industrial grade cold rolled steel and industrial solid steel ball, which take 150,000 times push-pull tests without damage. The maximum load weight is 150 lb,which vary with the length of slides. REGUDA is committed to produce sturdy and durable drawer slides , the service life of the slide rail could be 30 years at least.
• 【Detachable design; Without lock design】 There is a plastic buckle on the back of slides, the 3rd/inner track can be separated by pressing it, which mean the drawer screwed on the 3rd track can be installed and detached by your will easily; This”without lock” one doesn't have a lock handle, so it's can't be locked when it's fully closed or fully opened.You can choose the “with lock” one if needed.

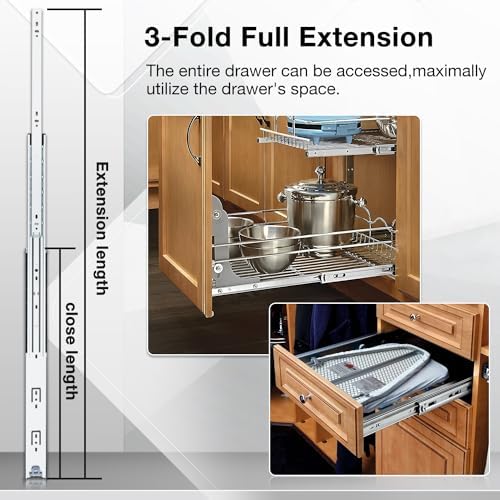

• 【Full extension; Smooth work 】 “The 3-fold full extension”means the drawer can be pulled out completely,so that the entire drawer to be accessed easily; “TWO row of high-quality solid steel balls “inside ,he drawer slides can work smoothly even though full loaded. Both of them make the act “open the drawer to get something “ become comfortable.

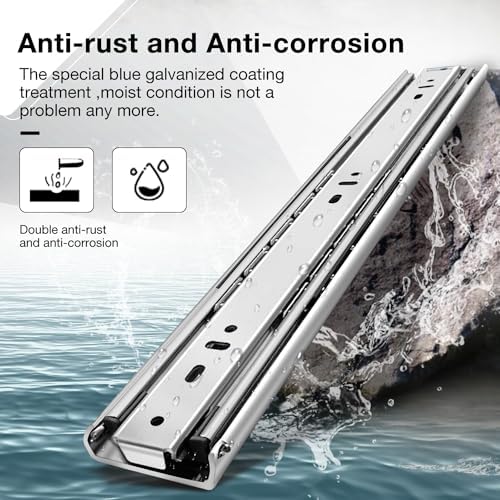

• 【corrosion resistant and Anti-rust】 The rust resistance of our slides is superior to the others because of the special galvanized blue sealing surface treatment.

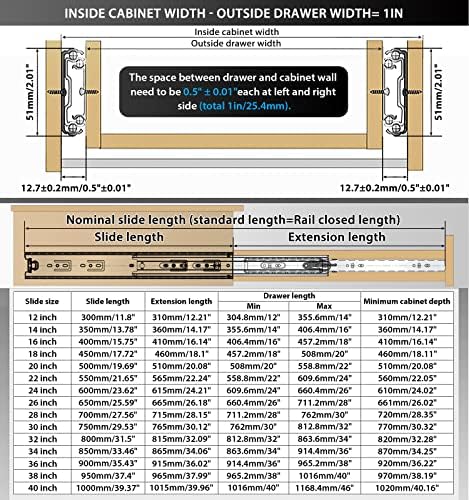

• 【installation notes】 Choose the size of the rails according to the depth of the drawer. The length of drawer≥length of slides,the tolerance 0.7in/20mm-1in/30mm is okay. The space between drawer and cabinet wall need to be 12.7mm/0.5in each side(total 25.4mm/1in). Attention: one set includes a pair of slides without any screws(The type M4 screws can be applicable,you can buy different M4 screws according your specific application scenarios). contact us without hesitate if any installing problem.
