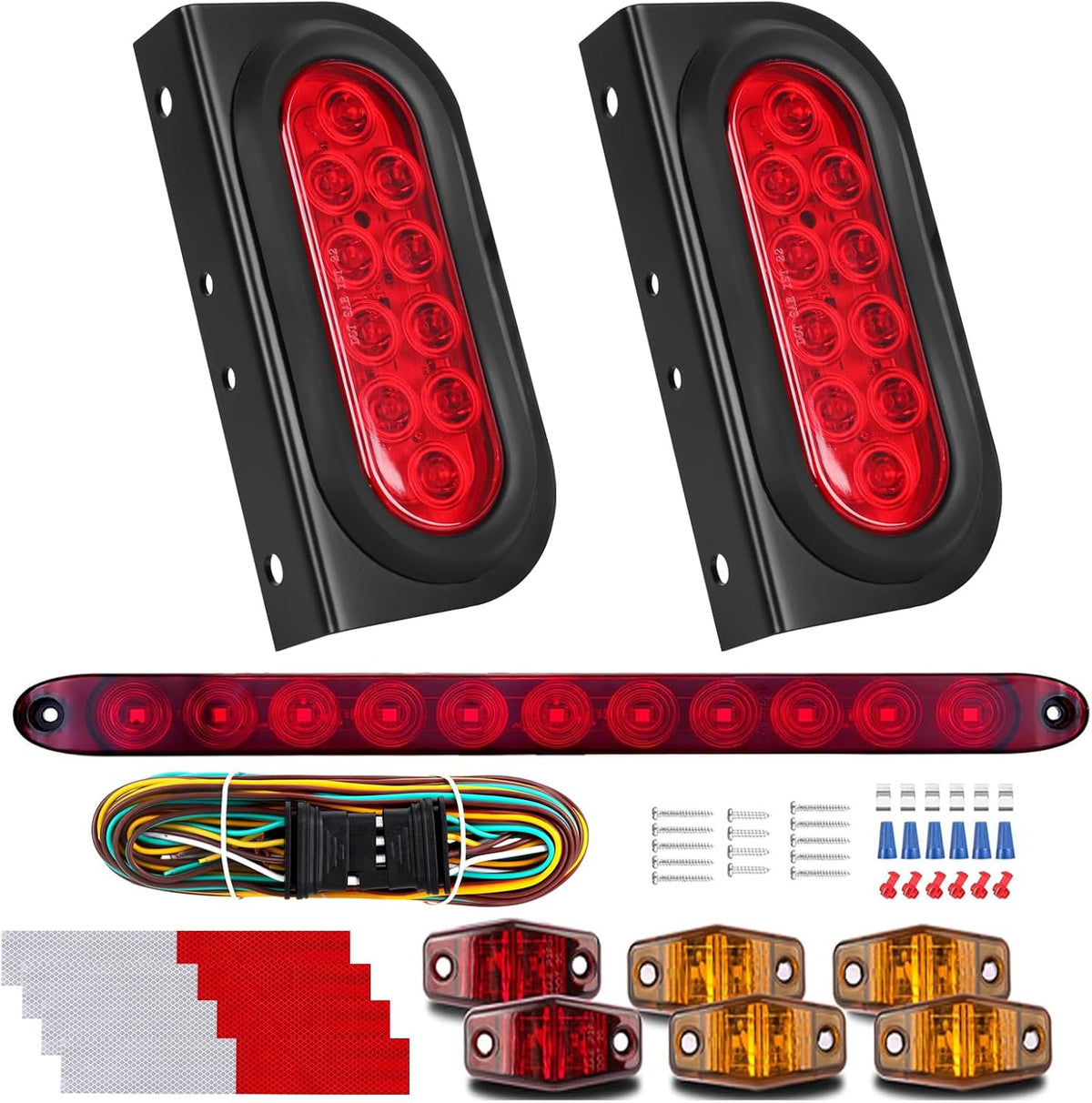

LIMICAR LED Trailer Light Kit with 15.6-Inch 11-LED Light Bar

Product Details

• Color:red
• Voltage:12 volts_of_direct_current
• Specific Uses For Product:RVs, boat trailers, campers, trucks, utility trailers
• Included Components:2 × 6-Inch Oval Trailer Tail Lights with Steel Mounting Brackets, 1 × 15.6-Inch 11-LED Identification Light Bar, 6 × Mini Side Fender Marker Lights (2 Red + 4 Amber), Rubber Grommets, 1 × Set of Mounting Screws and Hardware, 1 x 25ft Trailer Wiring Harness
• Number of Items:1
• Unit Count:2 Count
• Model Number:200741
• Light Source:LED
• Compatible with Vehicle Type:RV, boat trailers, campers, dump trucks, enclosed trailers, horse trailers, semi-trailers, travel trailers, utility trailers
• Additional Features:DOT compliant, IP67 rated, Multi-function, Vibration-resistant, Waterproof
• Auto Part Position:Rear
• Automotive Fit Type:Universal Fit
• Lens Material:Polycarbonate
• Lens Color:Red
• Model Year:2025
• Manufacturer Part Number:200741
• Item Highlight:Includes a 25FT Wiring Harness and 6 Marker Lights for Complete Rear and Side Visibility on 12V Trailers
• Number of Packs:1
• Set Name:Complete Trailer Lighting Kit with 2 Tail Lights, 1 ID Light Bar, and 6 Marker Lights
• Manufacturer Warranty Description:1 Year Warranty

About this item

• Super Bright & Longer Light Bar: Upgraded 15.6-inch ID light bar with 11 high-intensity 3030 SMD LEDs delivers wide-angle illumination across the full trailer width - brighter coverage than standard 13-inch bars. Each oval tail light features 11 premium LED diodes for maximum stop, turn, and running light visibility even in low-light or harsh weather conditions
• Ip67 Waterproof & Built to Last: IP67-rated waterproof seal blocks sand, dirt, water, and snow from reaching internal components. Polycarbonate lens paired with a high-strength rubber grommet welded to the mounting bracket ensures a permanent, vibration-resistant fit - no rattling, no corrosion, no resealing needed after years of road use
• Simple 3-Wire Hardwired Installation: Color-coded wires make installation straightforward. Red + White = brake/turn (high brightness); Black + White = tail/running (low brightness). ID Light Bar: White = Ground; White + Red = Stop & Turn; White + Black = Running Light. Fits standard 0.39 inch round hole - mount grommet, insert light, connect wires to vehicle. Includes 25FT wiring harness, mounting hardware and all necessary components
• 5-in-1 Multi-function Trailer Light Kit: Each kit combines stop light, turn signal, brake light, tail light, and running light in one sealed unit. The 15.6 inch center light bar doubles as a DOT-compliant identification bar. Kit also includes 6 mini side fender marker lights (2 red + 4 amber), rubber grommets, wiring pigtail plugs, and a license plate bracket - everything to complete a full trailer lighting setup
• Universal Fit for 12v Vehicles: Fits standard 2-1/2 inch 6-3/4 inch oval light holes. Compatible with utility trailers, boat trailers, enclosed trailers, horse trailers, travel trailers, dump trucks, semi-trailers, RVs, campers, and special vehicles running DC 12V systems
• Complete Kit with All Mounting Hardware: Package includes two 6-inch oval tail lights with powder-coated steel brackets, one 15.6-inch LED identification light bar, six mini side fender marker lights, complete wiring harness, rubber grommets, mounting hardware, and license plate bracket for comprehensive trailer lighting installation
