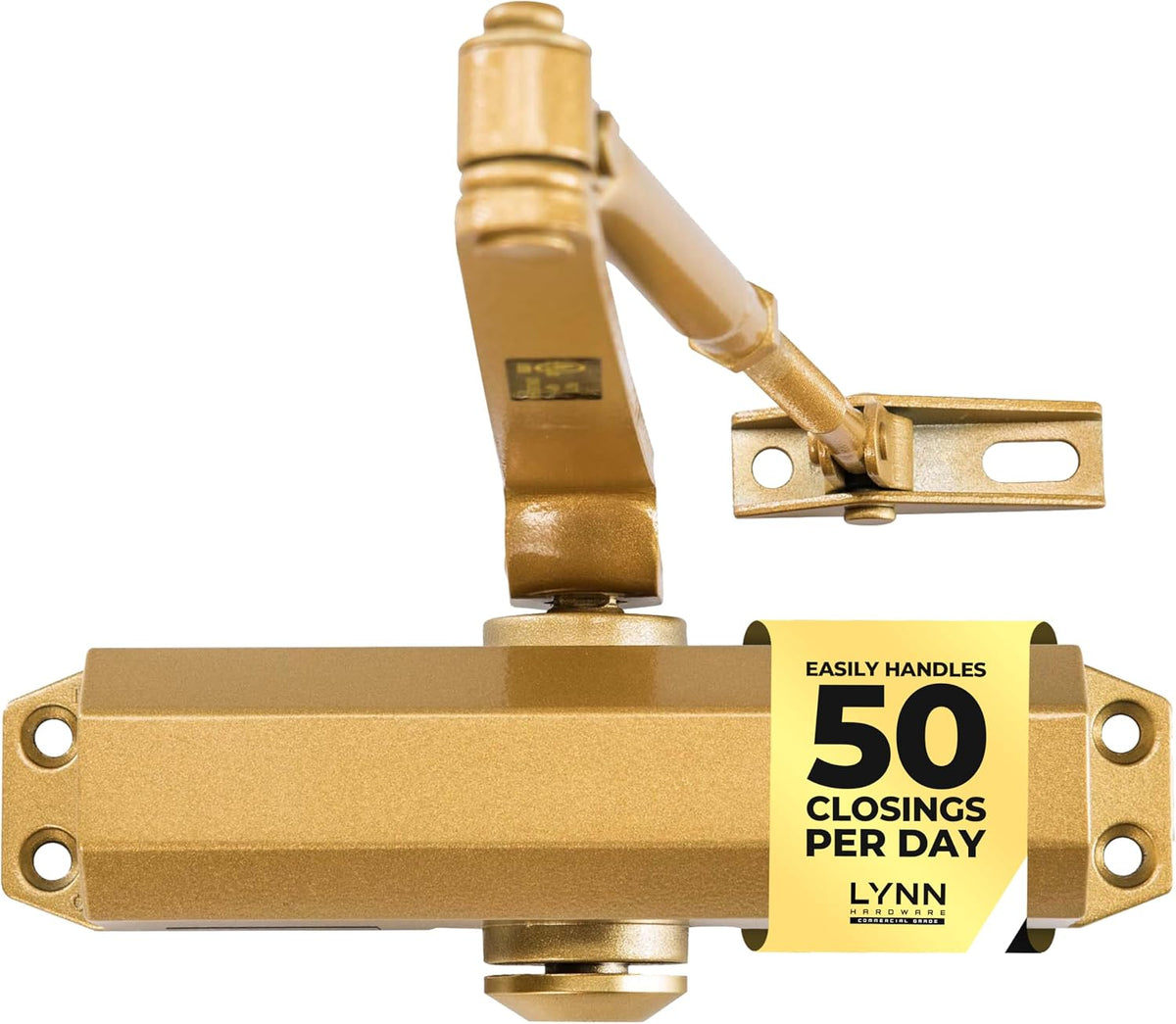

LYNN HARDWARE Light Duty Automatic Door Closer (Brass/Gold) - Highly Durable Cast Aluminum, Commercial or Home Use, Adjustable Speed Controls, 3 Mounting Options, 3 Hour Fire Rated (DC5003 Model)

Product Details

• Color: Painted Brass
• Size: Light / Medium Duty
• Item Weight: 1.59 kg
• Included Components: Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations
• Number of Items: 1
• Unit Count: 1 Count
• Model Number: DC5003
• Manufacturer Part Number: LYNN-DC5003-BRASS
• Installation Type: Screw-In
• Recommended Uses For Product: Light to medium traffic entrances, residential applications, light commercial areas (offices, storage closets)
• Specification Met: UL
• Item Dimensions L x W x H: 1.81"L x 7.13"W x 1.69"H
• Material Type: Aluminum
• Exterior Finish: Aluminum, Brass

About this item

• PREMIUM COMMERCIAL-GRADE PERFORMANCE: Built with a powder-coated cast aluminum body, wrought steel arm, and heat-treated piston, this residential and commercial door closer ensures durability, reliability, and corrosion resistance for doors in light-traffic areas (50 closings per day); suitable for offices, homes, storefronts, restaurants, and restrooms
• THREE MOUNTING OPTIONS: This non-handed automatic door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions (including an online video) are included for a hassle-free installation
• ADJUSTABLE FOR SPEED CONTROL: This hydraulic door closer features two adjustment valves to control the closing speed and the latching speed, it ensures a smooth, quiet, and secure latching every time
• CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Certified (tested to exceed 1 million cycles), ensuring safety and reliability; the DC5003 door closer is trusted by contractors, architects, interior designers, property managers and builders
• USA SUPPLIED & SUPPORTED: Our door closers commercial and residential applications are supplied by a USA-based company, providing reliable year-round support.
• SPECIFICATIONS: This door closer weighs 3.4 lbs (1.54 kg) and is for doors weighing up to 150 lbs (65 kg) and 36” (950 mm) wide; it’s dimensions are 1 11/16" (43 mm) high, 7 1/8" (181 mm) wide and 2 3/8" (60 mm) deep; its screw/bolt pattern is 6 1/2" wide (center to center) and 3/4" high (center to center); the spring force is fixed at a medium setting (also known as setting #3) which is approx 5 pounds of force
