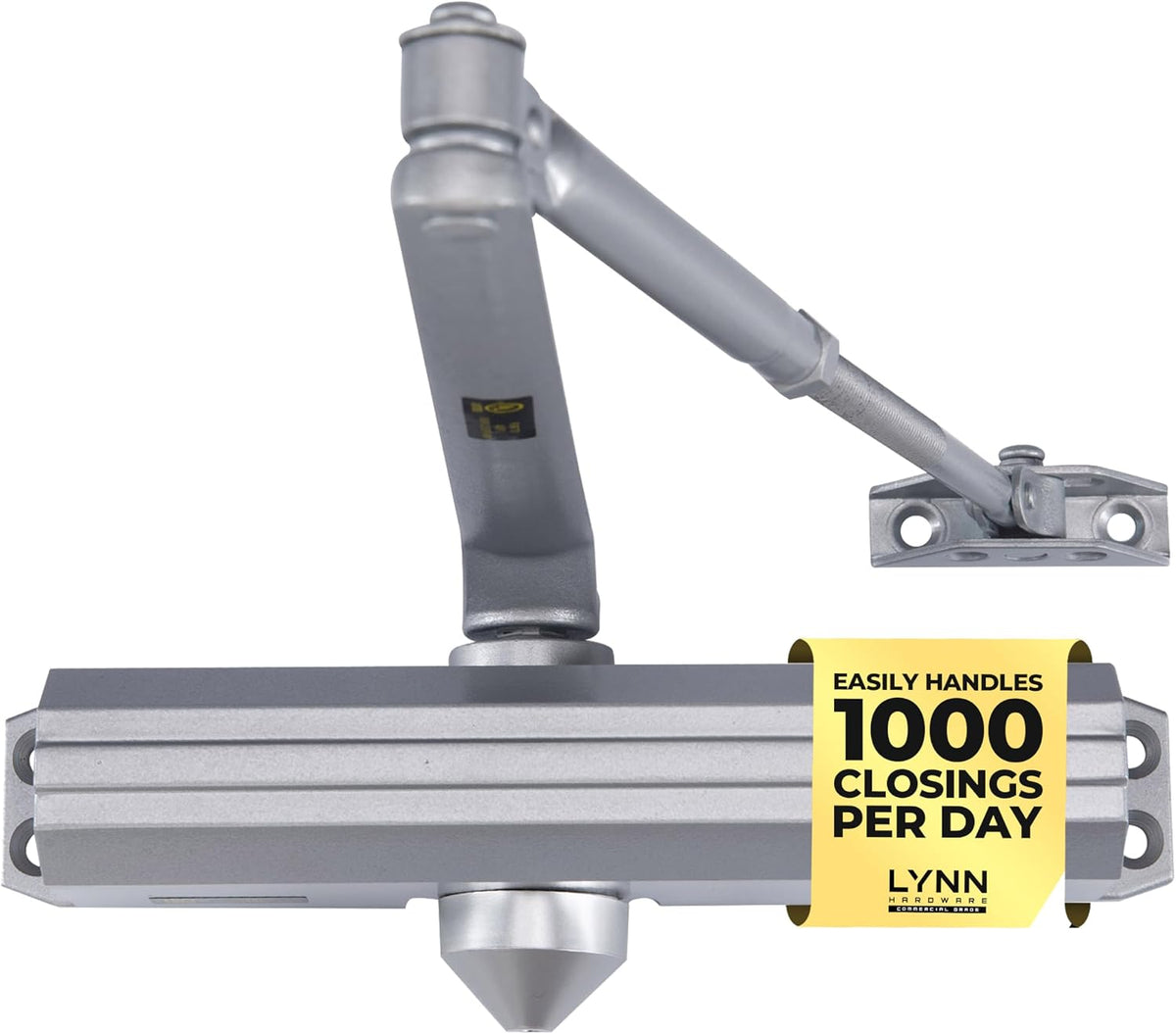

LYNN HARDWARE Medium/Heavy Duty Commercial Door Closer with Speed Controls

Product Details

• Color: Aluminum
• Size: Medium/Heavy Duty
• Item Weight: 5 pounds
• Included Components: Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations
• Number of Items: 1
• Unit Count: 1 Count
• Model Number: LYNN-DC7016-BC-ALUM
• Item Highlight: Contractors Choice, Adjustable Speed & Force, Automatic Door Closers, 3 Mounting Options, 3 Hour Fire Rated (DC7016 Silver)
• Manufacturer Part Number: LYNN-DC7016-BC-ALUM
• Installation Type: Screw-In
• Recommended Uses For Product: high-traffic areas, commercial and industrial applications, and places requiring fire-rated and durable door closers
• Specification Met: ADA, ANSI, UL
• Item Dimensions L x W x H: 1.75"L x 38"W x 1.75"H
• Material Type: Aluminum
• Exterior Finish: Aluminum

About this item

• PREMIUM COMMERCIAL-GRADE PERFORMANCE: Made with a powder-coated cast aluminum body, wrought steel arm, and heat-treated piston, this commercial door closer ensures durability, reliability, and corrosion resistance for doors in medium to high-traffic areas (up to 1,000 openings per day); suitable for store fronts, schools, offices and bathrooms
• THREE MOUNTING OPTIONS: This non-handed auto door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions are included for hassle-free installation
• 4 ADJUSTMENT VALVES FOR COMPLETE CONTROL: This hydraulic door closer features 4 adjustment valves to control the closing speed, latching speed, backcheck and spring force (for ease of opening); fine-tune for smooth, quiet, and secure closing
• CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Grade 1 Certified (tested to exceed 2 million cycles), ensuring safety and reliability; the DC7016 door closer is trusted by contractors, property managers, and builders
• USA SUPPLIED & SUPPORTED: Our commercial door closers are supplied by a USA-based company, providing reliable year-round support
• SPECIFICATIONS: This door closer weighs 6.3 lbs (2.9 kg) and is for doors weighing up to 330 lbs (150 kg) and 60” (1500 mm) wide; it’s dimensions are 1 3/4" (44 mm) high, 9 5/8" (244 mm) wide and 2 3/4" (70 mm) deep; its screw/bolt pattern is 9 1/16" wide (center to center) and 3/4" high (center to center); the spring force is adjustable from Setting # 1 (2 pounds of opening/closing force) through to Setting # 6 (14 pounds of opening/closing force)
