Product Overview

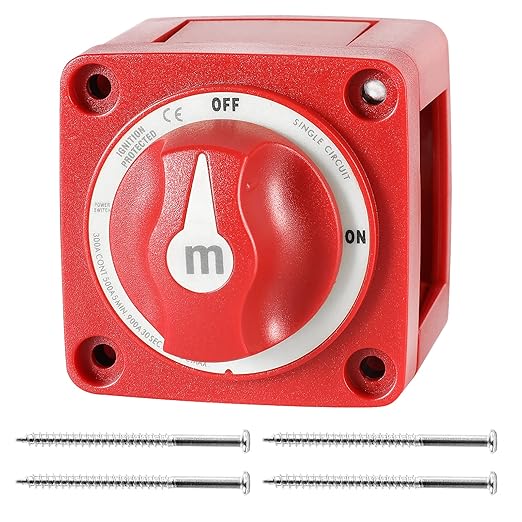

The Huazu M Series Battery Switch is a Battery Switches product by Huazu. It features this m-series battery switch with on/off position acts as a.
Key Features

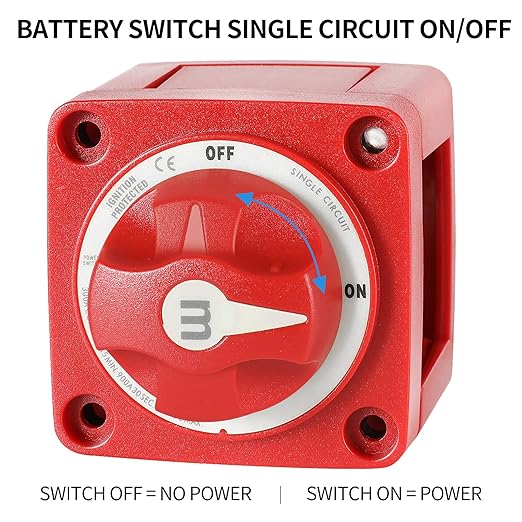

- This M-Series Battery Switch with On/Off position acts as a power cut off, eliminating any power drain from the battery pack. Disconnect the batteries safely when the vehicle or boat is not in use.
- Make-before-break contact design allows switching between battery banks without power interruption.
- The battery disconnect switch has a crank rating of 900A for 30 seconds, 500A for 5 minutes, and a continuous rated current of 300A. Maximum Operating Voltage: 48V.

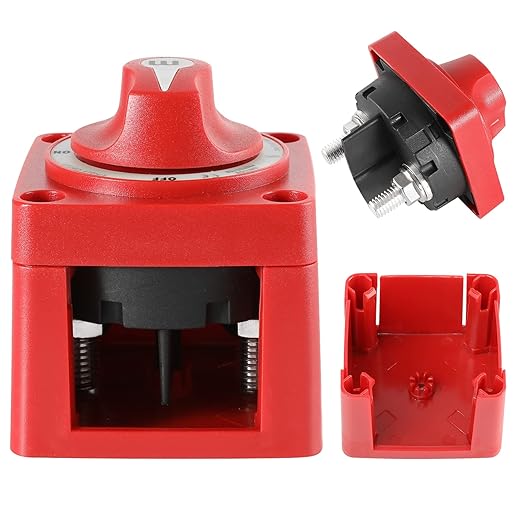

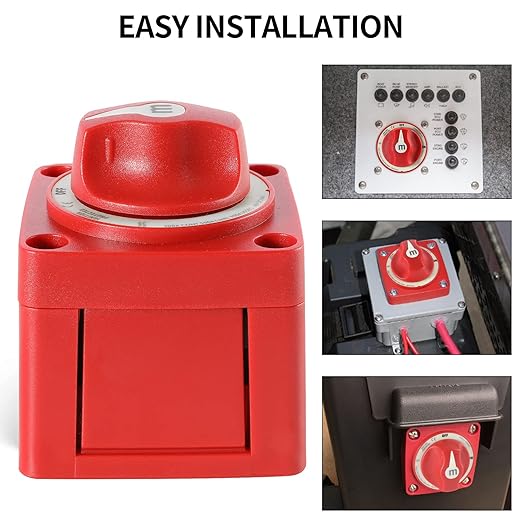

- This battery switch can be safely mounted on gasoline powered boats, the chassis design allows for surface, front panel or rear panel mounting.
- This red battery cut off switch is ideal for RV, travel trailer, marine, boat, camper, truck, ATV, UTV, etc.
Why Choose the Huazu M Series Battery Switch
The Huazu M Series Battery Switch offers this m-series battery switch with on/off position acts and make-before-break contact design allows switching between battery banks. These features make the Huazu M Series Battery Switch a strong option in the Battery Switches category.
Best For
The Huazu M Series Battery Switch is best suited for: RV.
Quick Summary
The Huazu M Series Battery Switch is a Battery Switches product by Huazu. Operation Mode: ON-OFF. Current Rating: 200 Amps. Operating Voltage: 48 Volts. Contact Type: Normally Closed. Connector Type: Plug In. Price: $39.58.
Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | ON-OFF |
| Current Rating | 200 Amps |
| Operating Voltage | 48 Volts |
| Contact Type | Normally Closed |
| Connector Type | Plug In |
| Brand | Huazu |

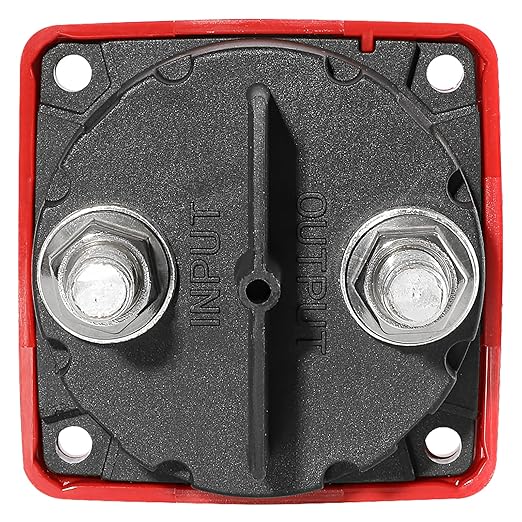

| Terminal | Screw |

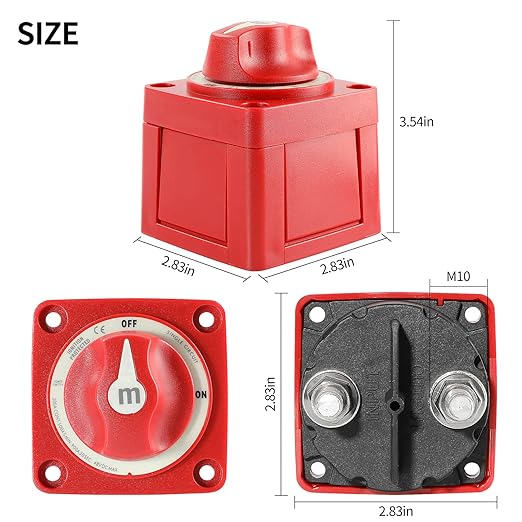

| Item dimensions L x W x H | 2.95 x 2.95 x 3.54 inches |
| Mounting Type | Panel Mount |
| Contact Material | Brass |
| Switch Type Ignition Switch | Material 黄铜 |
