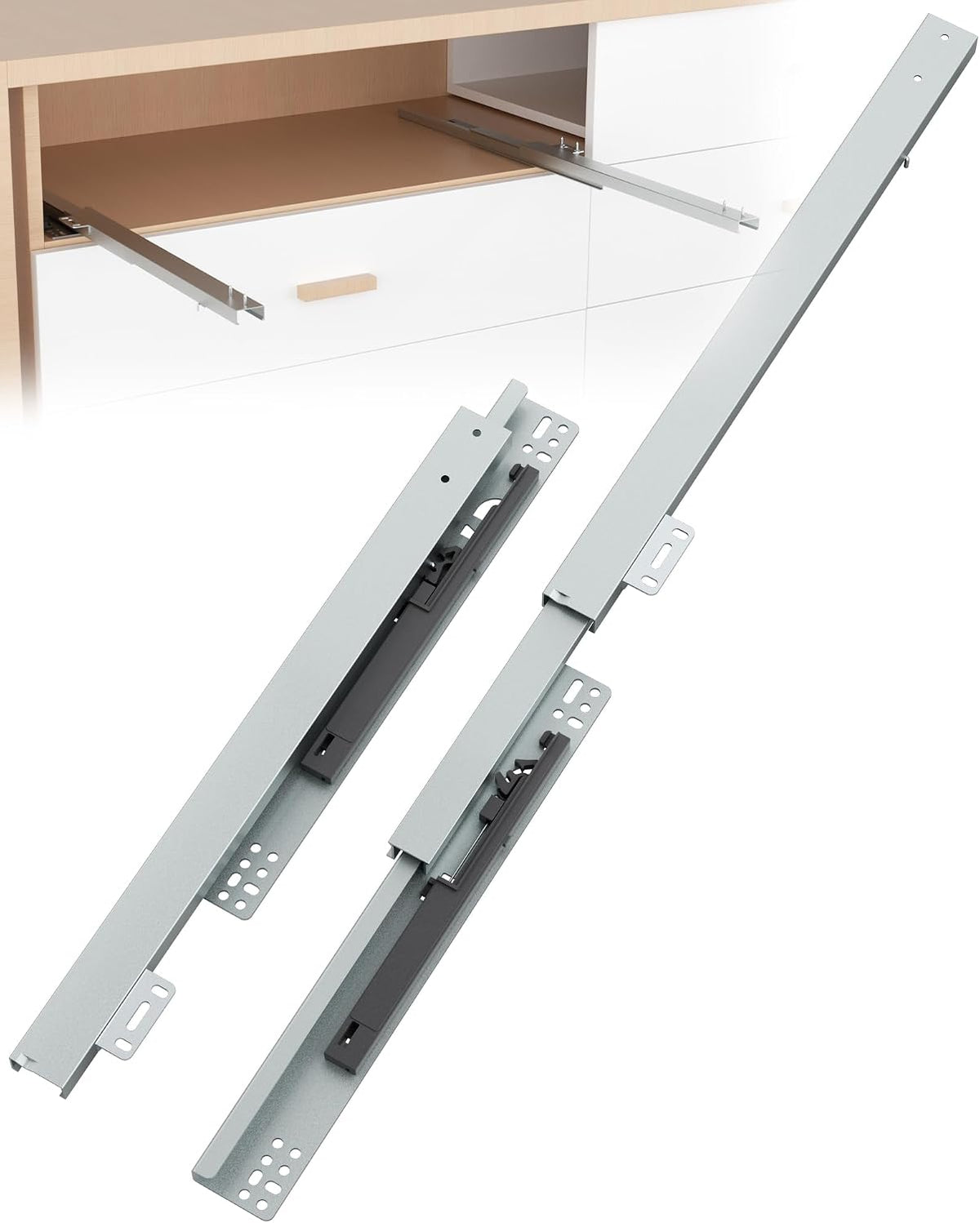

Onemake 18" Bottom Mount Drawer Slides, Soft Close Full Extension, 1 Pair

Product Details

• Color: Silver
• Mounting Type: Bottom Mount
• Included Components: Bottom-Mounted Soft Close Drawer Slides (1 Pair), Installation Guide, M3.5 x 16mm Flat Head Wood Screws
• Number of Items: 1
• Unit Count: 1 Count
• Model Number: UD29S
• Manufacturer Part Number: UD29S
• Material Type: Zinc-Coated Steel
• Item Dimensions L x W x Thickness: 18"L x 2.14"W x 1.06"Th
• Item Highlight: Concealed Undermount Track, Smooth Runners, Hidden Guide Rails for Kitchen, Pull Out Shelves, Cabinets, Dressers, 100 Lbs
• Finish Types: Galvanized
• Maximum Weight Capacity: 100 pounds
• Drawer Type: Under Mounted Slide

About this item

• True Bottom-Mounted Design & No Side-Wall Requirement: Mounts directly to the cabinet bottom panel or board supports without requiring left or right cabinet side walls. Ideal for pull-out shelves, sliding trash can roll-outs, storage trays, jewelry drawers, pantry organizers, and custom furniture projects where side mounting is not possible. Note: Features a fixed one-piece construction and cannot be detached; Ensure at least 27mm of clearance between the drawer and cabinet bottom panels
• Soft-Close Movement & 3-Section Full Extension Access: Integrated hydraulic dampers ensure a gentle, whisper-quiet self-closing motion to help reduce slamming. The synchronized 3-section design delivers smoother, more stable drawer travel with reduced side-to-side movement, extending fully for clear visibility and easy access to items stored at the very back of the drawer
• Easy Bottom Mount Installation & Flush Alignment: Mount directly to the cabinet bottom panel. For Overlay setup, install slides perfectly flush with the front edge of the cabinet bottom panel (for Inset setup, recess slides by the door thickness to achieve a flush finish). If the drawer bottom is recessed, add shims as needed to ensure proper slide clearance. Ensure the drawer front aligns with the slide front before tightening so the drawer closes flush with the cabinet
• 100 Lbs Load Capacity & Heavy-Duty Zinc-Coated Steel: Made from thickened zinc-coated steel sheets and engineered with a bottom-supported structure for stable operation under load. Supports up to 100 lbs (45 kg) per pair while maintaining smooth, reliable, and consistent movement without bending or binding over time
• Versatile Multi-Size Project Fit & DIY Projects: Available in 10", 12", 14", 16", 18", 20", 22", and 24" lengths to fit a wide range of cabinet depths. Tailored beautifully for upgrading deep dresser, utility drawers, chest of drawers, and kitchen renovations
