Partswcgg Submersible LED Trailer Tail Light Kit 12V w/25FT Wiring Harnness

Product Details

• Color:Red/Amber/White
• Voltage:12 volts
• Specific Uses For Product:stop/turn/tail, STT, stop lights, turn signal lights, tail lights, rear reflex, rear clearance, side reflex, side markers, side clelarance, 3rd brake lights etc.
• Included Components:rectangle led tail lights, 8pcs mini led markers, 13.8" led lights bar, 5pin 25ft wiring harness
• Number of Items:1
• Model Number:WCXT-047
• Light Source:LED
• Compatible with Vehicle Type:truck, trailer, boat trailer, utility trailer, etc.
• Additional Features:Submersible
• Auto Part Position:Rear
• Automotive Fit Type:Universal Fit
• Lens Material:Plastic
• Lens Color:Red
• Manufacturer Part Number:WCXT-047
• Item Highlight:Rectangular Led Boat Trailer Brake Stop Turn Tail License Plate Lights w/Mini Markers/Tail Strip Bar for Camper Truck RV Boat
• Number of Packs:1
• Set Name:Submersible LED Trailer Tail Light Kit
• Manufacturer Warranty Description:1 Year Warranty

About this item

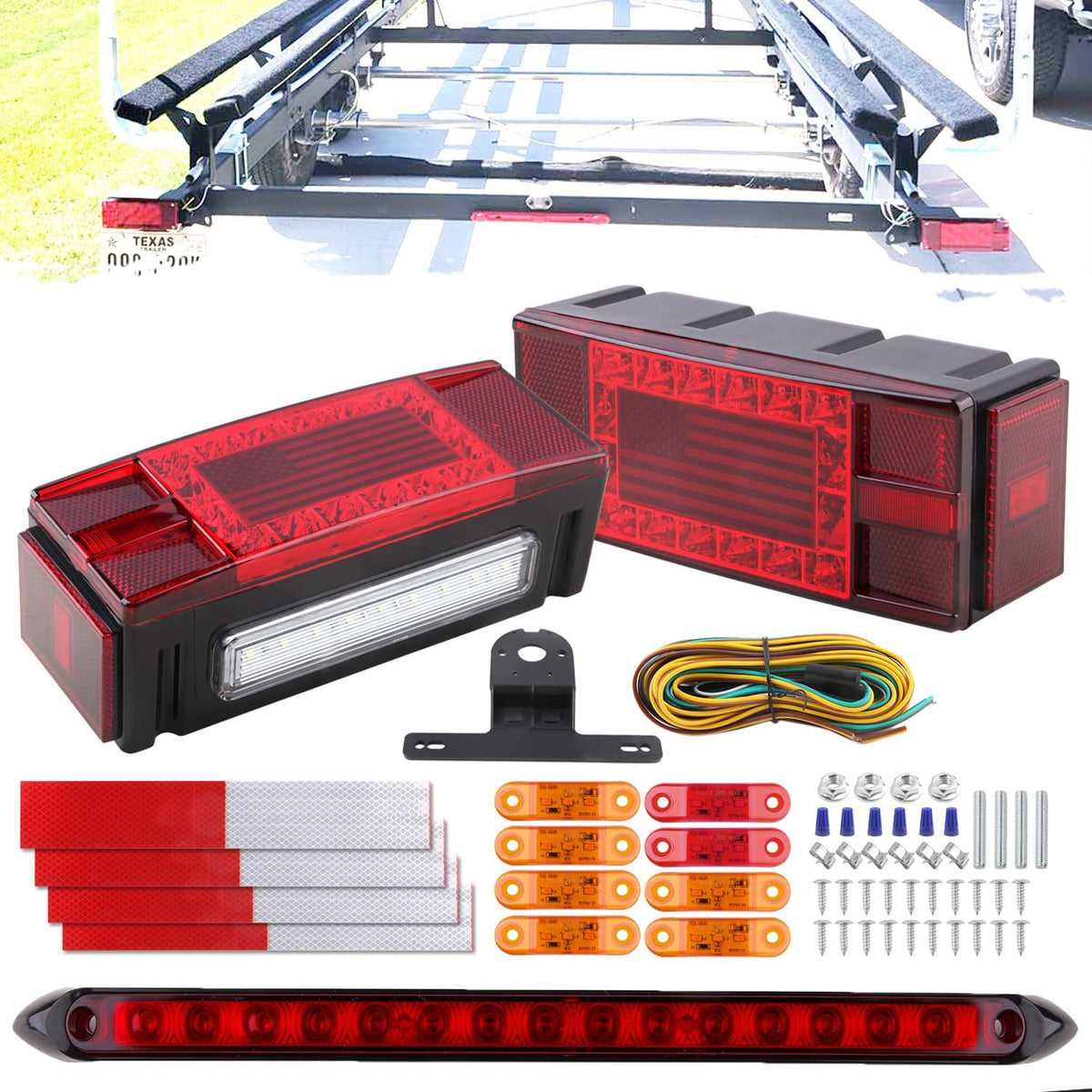

• This 12v Submersible LED Trailer Tail Light Kit includes 2Pcs rectangle stop turn LED combination tail lights(unique flag design), 8Pcs Mini Oval side fender clearance marker lights (2Red+6Amber), 1Pc 13.8 Inch Trailer 3rd brake tail light bar, 4Pcs reflective stickers, 25ft wiring harness with 4-flat plug(22ft+4feet), license plate bracket, mounting hardware. This trailer led light kit has everything you need to upgrade your trailers at once;
• This unique flag Submersible Boat Trailer Light Kit has multi functions: stop light, brake light, turn signal light, tail light, rear reflex reflector, side marker light, side rear clearance lights, side reflex reflector and built-in license plate light on driver's-side light illuminates license plate;
• Wiring Tips of 12V LED Trailer Lights Kit for Utility: white wire is ground, yellow wire is high brightness for brake Light and brown is low brightness as Running Light/Left License Plate illuminator(Rectangular combination tail lights); white is ground, red is high Brightness for brake/stop/turn light, black is low brightness as running Light(13.8" led trailer tail light bar); black is ground and red is positive(mini side markers);
• Brightness: 12V LED Low Profile Submersible Rectangular Trailer Light has 24 Diodes as stop, turn, tail, side marker, side reflex, and rear reflex functions and on left side Built-in license plate light(6 white led) illuminates license plate; 13.8" LED trailer tail light bar with 11 LEDs provides stop, tail, and turn functions and surface mounts to trailer; 2.5" Rectangular LED mini trailer light has 2 led diodes each to provides marker/clearance lights;
• Submersible and Waterproof: The led trailer wiring lights kit is completely sealed as IP68 waterproof, which means no water can enter inside to damage the circuit board and ideal for most vehicles such as trailers, campers, trucks, Dump Truck, boat marine, snowmobile, tractors, semi-trailer, bus and other trailers over 80" wide.
