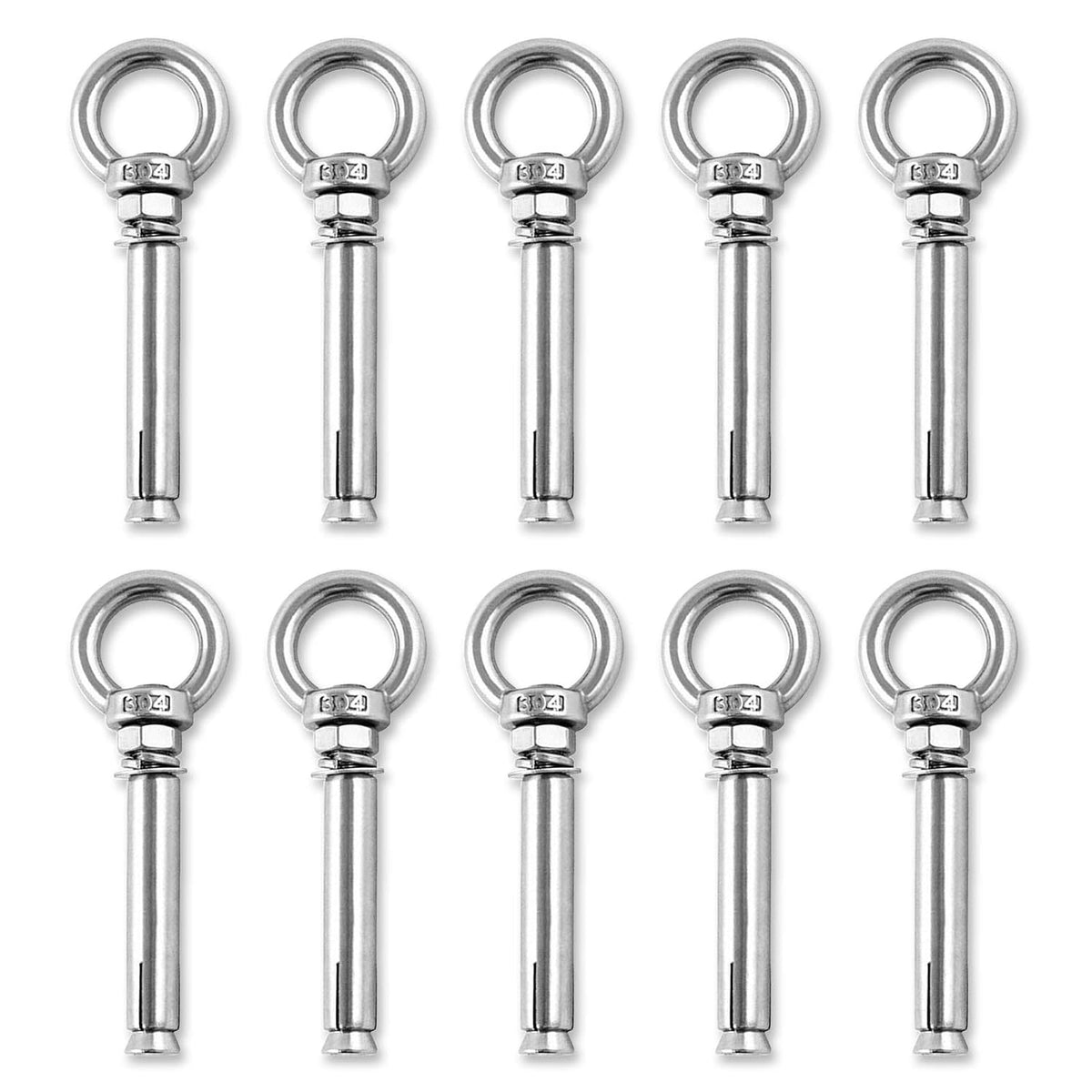

Shoulder Eye Bolts, Heavy Duty Eyebolts 304 Stainless Steel Wall Concrete Anchors Screw Expansion Bolts with Nuts Eye Hooks Fastener for Ceiling Concrete Masonry

Product Details

• Color: 304 Stainless Steel
• Number of Items: 1
• Unit Count: 10 Count
• Part Number: EB/PZH
• Thread Size: M10
• Exterior Finish: Stainless Steel
• Manufacturer Grade: Grade C
• Screw Head Style: Eye Nut
• Fastener Type: Eye Bolt
• Thread Type: Un
• Thread Style: Right Hand
• Item Hardness: Rockwell B70
• Head Type: Eye Nut
• Thread Class: 3B
• Maximum Shear Strength: 441 lbs
• Screw Point Style: Cone Point
• Compatible Groove Diameter: 0.55 inches
• Grade Rating: Class 6
• Set Screw Thread Type: Metric
• Material Type: Stainless Steel
• Finish Types: Glossy
• Item Diameter: 0.37 inches
• Size Name: 3/8inch(M10)-10PCS
• Fastener Size: M10
• Thread Coverage: Partially Threaded
• Set Name: Shoulder Eye Bolts 10 Pack
• Model: EB/PZH

About this item

• ✔【Size & Qty】Inside the package is 10 m10 concrete anchors. Ring: 1.651"x1.638"x0.327"(abh), screw: 0.372"x3.869" (WxL), sleeve: 0.533"x2.761"(WxL). The recommended drill bit size is 9/16“ or 0.55 inches , drilling a hole of 0.52" dia and 3" deep
• ✔【Nicely Made】304 stainless steel, anti-loosing lock washers, shiny finish, rustproof, and long use period
• ✔【Heavy Duty】Eye screws for concrete can carry up to 441 lbs. Working Load: 441 lbs. Broken Load: 882 lbs
• ✔【Easy to Install】The eyebolt works by rotating ring clockwise until unable to rotate, then screw will expand and entirely fill a hole
• ✔【Worked Great】M10 shoulder eyebolts work so well for so many applications in soil nailing, masonry, anchors and concrete surface. Worked perfectly for installing sun shade sail/sail on brick walls, fixing rope, canopy, perfect accessory for making fence, home decoration or engineering, etc
