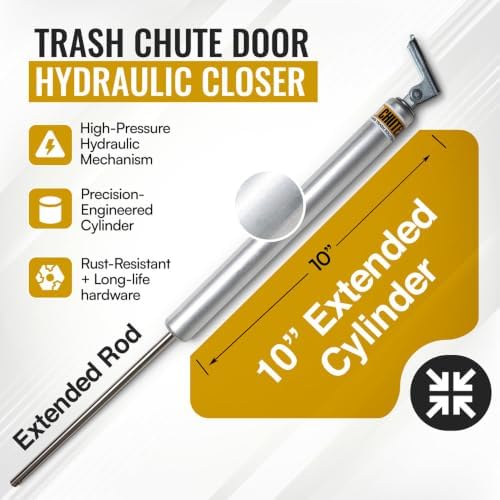

Trash Chute 10" Inch Extended Hydraulic Silver Closer for Bottom Hinged Rubbish or Linen & Laundry Intake Doors

Product Details

• Color: Silver
• Size: 10 Inch Extended
• Item Weight: 12.16 ounces
• Included Components: x1 10 Inch Silver Aluminum Piston Closer, x1 Bracket, x1 Extended Coupling, x2 Pivot Pins, x2 Stainless Sheet Metal Screws parts
• Number of Items: 1
• Unit Count: 1 Count
• Model Number: 0740931855712
• Number of Pieces: 7
• Manufacturer Part Number: trash-chute-extended-hydraulic-door_10
• Installation Type: Screw-In
• Recommended Uses For Product: rubbish chutes, linen intake doors
• Specification Met: NFPA
• Item Dimensions L x W x H: 1"L x 1"W x 17.62"H
• Material Type: Aluminum
• Exterior Finish: Silver

About this item

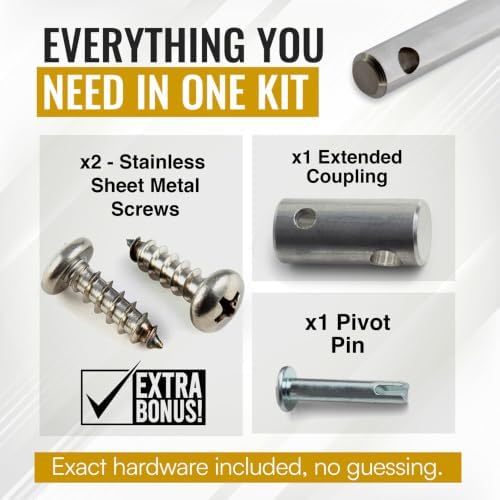

• INCLUDED HARDWARE - x1 10 Inch Silver Aluminum Piston Closer, x1 Bracket, x1 Extended Coupling, x2 Pivot Pins, x2 Stainless Sheet Metal Screws parts

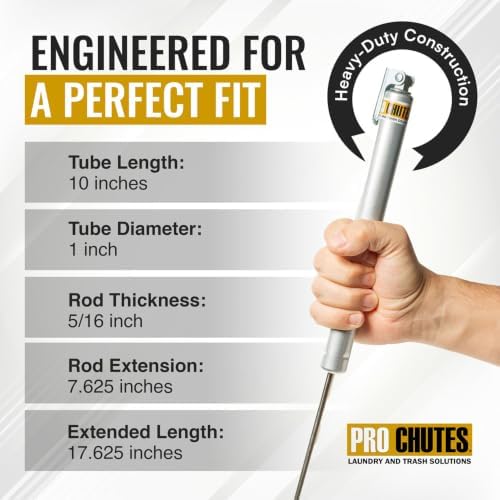

• MEASUREMENTS - Hydraulic Can Handle Loads With A Starting Force Of 30 lbs. And A Final Force Of 55 lbs. The 10” Closer Cylinder Is 1” In Diameter. The Rod Diameter Is 5/16”. The Rod Extends To 7.5", And Has A Stroke Of 4.875". #18 (.169") Rod Hole.
• NOISELESS - Piston Is Designed To Be Silent For Quiet Operation. Controls The Door's Swing Smoothly To Prevent Slamming. Meets NFPA requirements

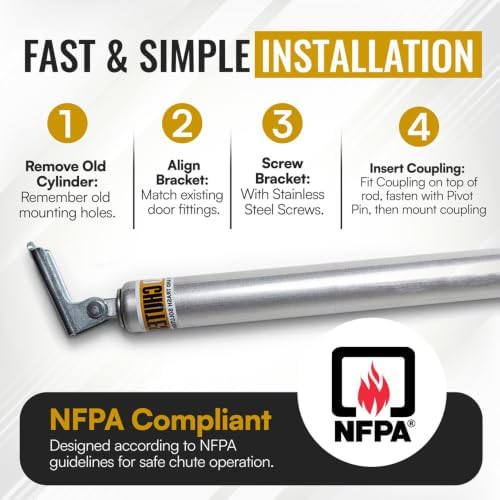

• EASY INSTALLATION - 15 minutes Task Completion To Screw And fit. Meets NFPA requirements

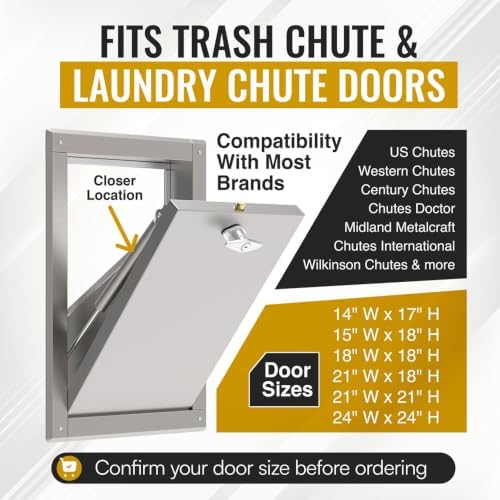

• COMPATIBLE - Acme, Action, American, Century, Chutes Doctor, Chutes International, Cutler, Hi-Rise Recycling Systems Inc., Midland, Nycor, US Chutes, Valiant, Western, & Wilkinson Chutes
