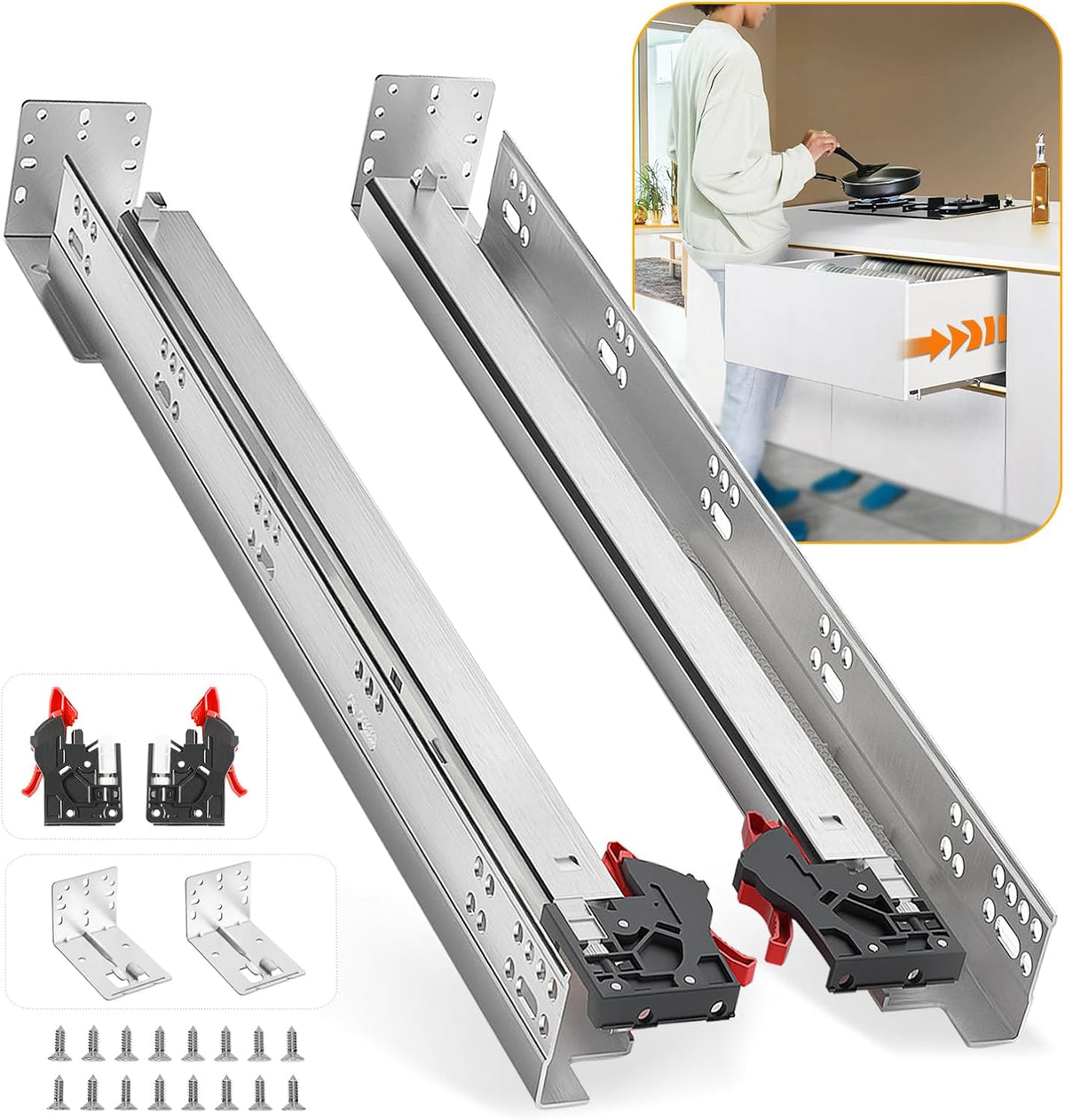

Undermount Soft Close Heavy Duty Drawer Slides 21 Inch, 80LB

Product Details

• Color: Soft Close
• Mounting Type: Under Mount
• Included Components: DRIWER SLIDE
• Number of Items: 1
• Unit Count: 2 Count
• Model Number: MK136
• Number of Packs: 1
• Manufacturer Part Number: MK136
• Material Type: Metal
• Item Dimensions L x W x Thickness: 21"L x 21"W x 0.63"Th
• Item Highlight: Hidden Bottom Mount Full Extension Cabinet Drawer Runners Rear Mounting Bracket 1D Locking Devices Concealed Rails 1 Pair
• Finish Types: Steel
• Maximum Weight Capacity: 80 pounds
• Drawer Type: Soft Close Drawer Slides

About this item

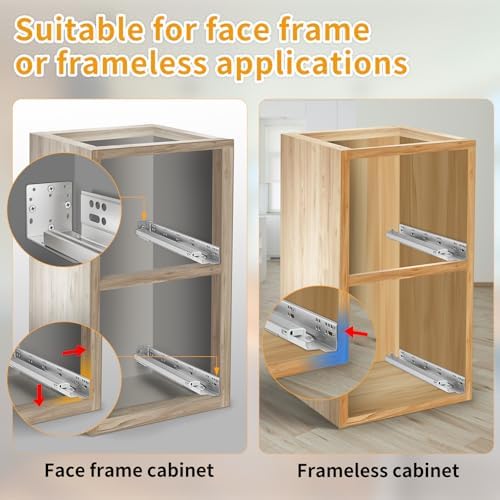

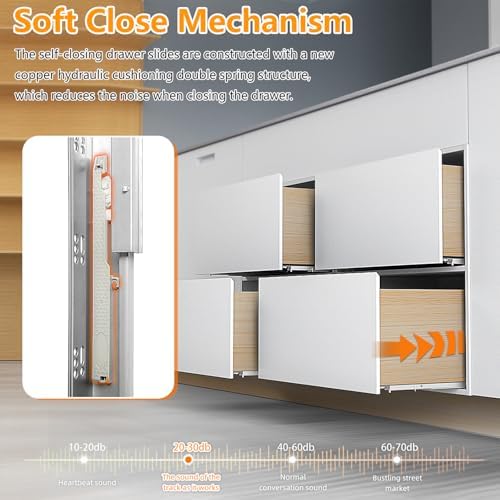

• 【 Soft Close Bottom mount Drawer Slides 】 Drawer slides are placed on the bottom of the drawer. But screws are mounted on both sides of the cabinet.The self-closing drawer slide rail adopts a new copper hydraulic buffer double-spring structure, thus reducing noise when closing the drawer. More effective in preventing baby pinching, safe and reliable. (NOTE: Complete pair for face frame or frameless application. Refer to the video attached to the link for specific installation details.)

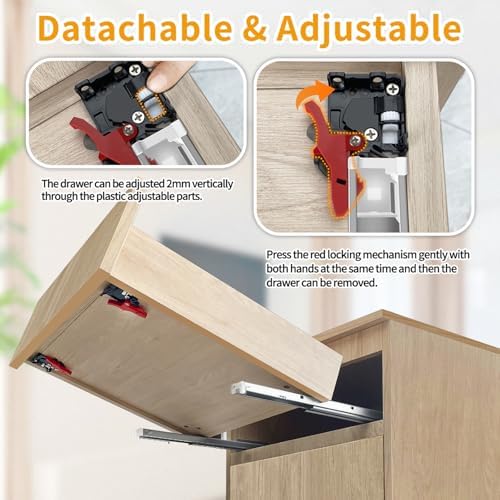

• 【Detachable & Full Extension】 It's approximately 2 times in length when the slide is fully extended, which means you can completely pull out your drawer installed with our drawer slides. You can squeeze two handles(locking device) on the locking mechanism in the meantime. And then pull up the drawer. like cleaning the drawer.Convenient for installation and maintenance, such as cleaning the drawer.

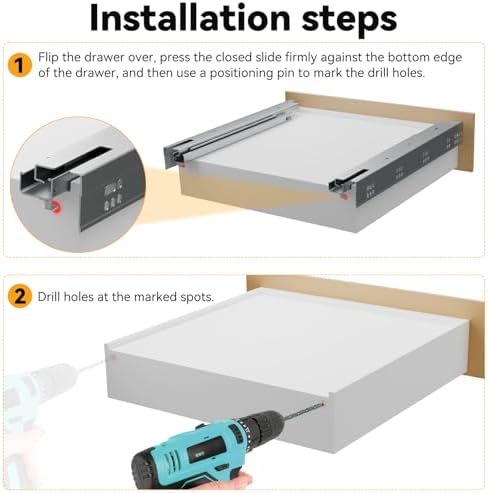

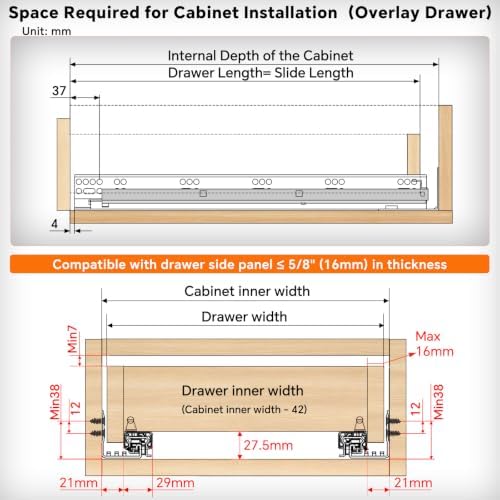

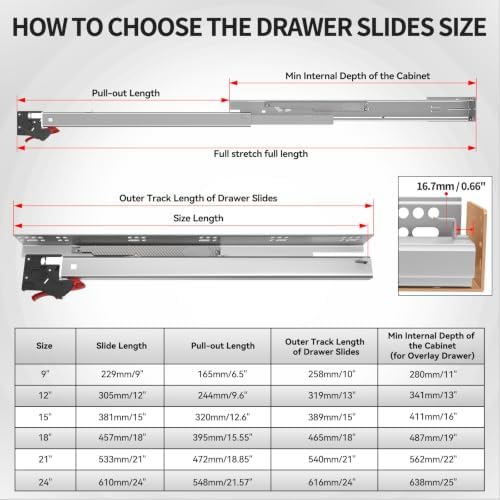

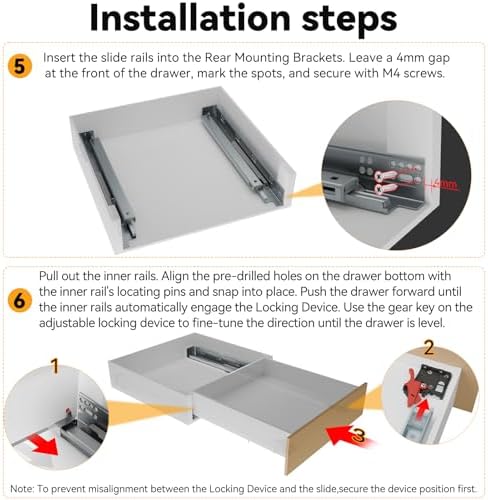

• 【Installtion Guide】 This is undermount soft close drawer slide. The maximum thickness of the side panel of the applicable drawer is 16mm (5/8″). Clearance between slides with cabinet: 20mm (0.78inch)- 40mm (1.58inch). Drawer length: min 533mm (21")/ max 610mm (24"), cabinet depth: about 560mm (22.04"), please choose 21" drawer slides.
• 【Durable & Smooth】 BAIDICE undermount drawer slides has excellent anti-rust and mute function, with internal ball bearings that can support weight and operate quietly. After testing, the number of times the slide rail is opened and closed is more than 150,000 times.

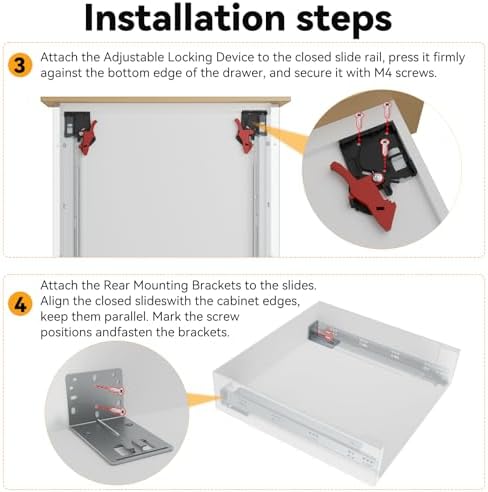

• 【 Customer first】 Customer first. Any quality or installing problem please feel free to contact us. Package of 1 pair drawer slide includes: drawer slides (2pcs), adjustable locking device(2pcs), rear mounting brackets(2pcs), mounting screws, installation instructions.
