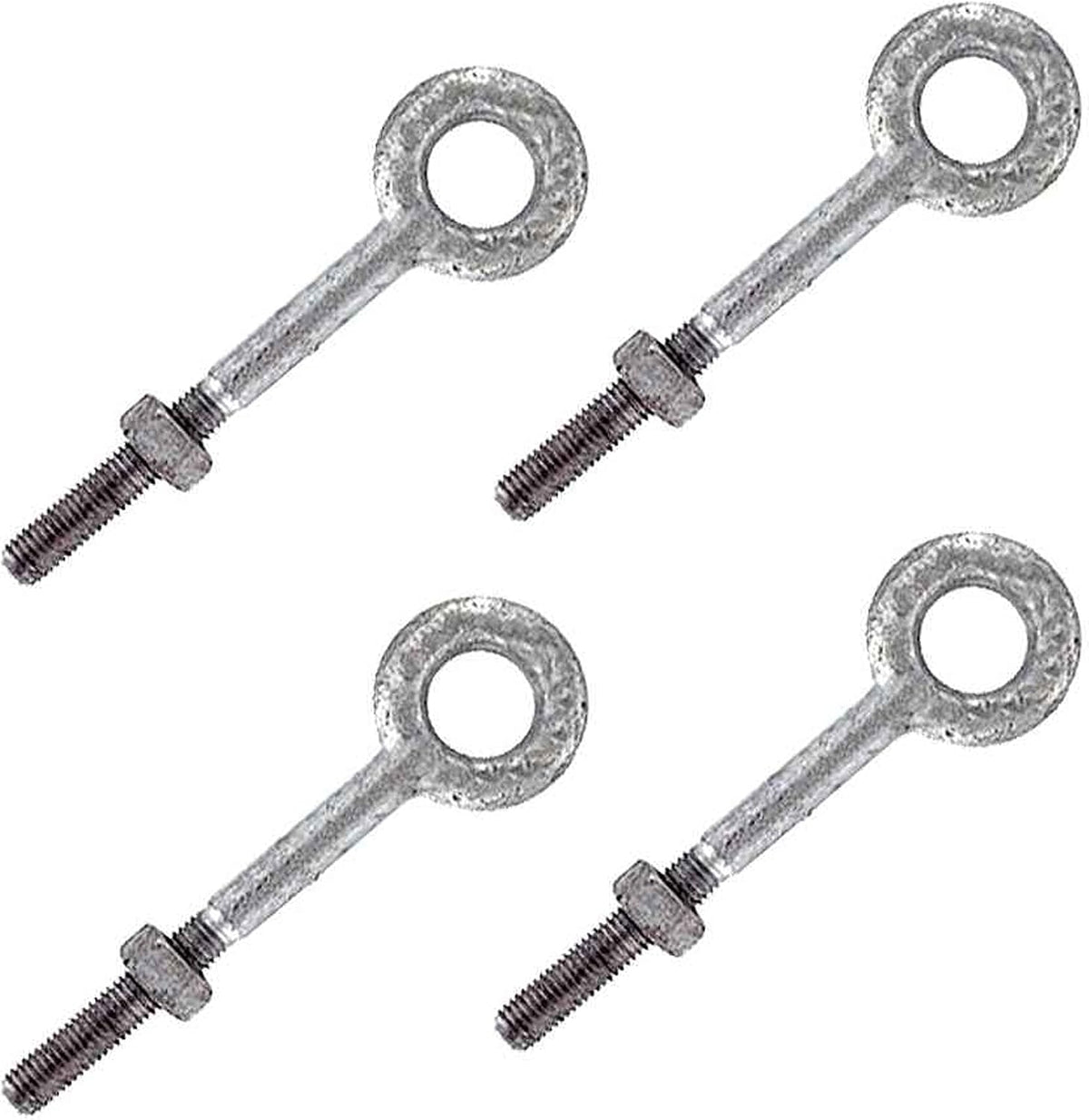

US Cargo Control 5/8 Inch x 8 Inch Galvanized Eye Bolts (4 Pack), 5,200 LBS Working Load Limit, Heavy Duty Eye Bolts to Use for Lifting, Rigging, and Anchoring, Intended for Straight Line Pulls

Product Details

• Color: Silver
• Item Weight: 1.3 pounds
• Number of Items: 4
• Unit Count: 4 Count
• Part Number: GVEB58X8-4PK
• Exterior Finish: Zinc
• Manufacturer Grade: heavy-duty
• Screw Head Style: Eye
• Fastener Type: Eye Bolt
• Thread Type: Unc
• Thread Style: Right Hand
• Item Hardness: Grade 8.8 or Grade 10.9
• Head Type: Eye
• Compatible Groove Diameter: 0.63 inches
• Metal Type: Alloy Steel
• Finish Types: Galvanized
• Item Diameter: 0.63 inches
• Size Name: 5/8" x 8"
• Number of Pieces: 4
• Fastener Size: 5/8 inches
• Outside Diameter: 0.63 inches
• Set Name: 4 pieces

About this item

• SPECS - (4) Lifting Eye Bolt
• Diameter: 5/8"
• Shank Length: 8"
• Width: 1.44"
• Material: Galvanized
• Working Load Limit: 5,200 lbs.
• Assembly Break Strength: 17,500 lbs.
• Product Weight: 1.3 lbs
• MULTI-USE - The 5/8 eye bolts can be used for many applications, including adding an additional eye or anchor to your rigging setup. You can secure wire rope, cable, hooks, and other hardware to the attachment point. Use only for straight line pulls.
• GALVANIZED FINISH - The galvanized eyebolts have a thin coating of zinc oxide to protect the steel from elements, and maintains its strength for long-lasting durability.
• SECURING - The threaded part must protrude through the load so the nut has full engagement of threading. If it protrudes too far through the load, you may need to shim the bolt with washers between the nut and the load prior to putting the nut on.
• HEAVY-DUTY - WIth a working load limit of 5,200 lbs and assembly break strength of 17,500 lbs. you can trust the screw in eye bolts to do the job well when it comes to rigging, anchoring, pulling, pushing, or hoisting applications.
