VMTW 8X1 CBN Grinding Wheel 180 Grit 1/4 inch side face for High Speed Steel

Product Details

• Item Dimensions: 9.6 x 9.6 x 1.5 inches
• Item Weight: 3 pounds
• Compatible Devices: Bench Grinder
• Number of Items: 1
• Unit Count: 1 Count
• Part Number: JRD-8X1X180g
• Grit Type: Medium
• Grit Number: 180
• Maximum Rotational Speed: 3600 rpm
• Recommended Uses For Product: Cutting, Grinding
• Compatible Material: High Speed Steel (Hss)
• Grit Material Type: Cubic Boron Nitride
• Construction Type: Grinding
• Item Dimensions L x W: 8"L x 8"W
• Item Thickness: 0.25 inches
• Item Diameter: 8 inches
• Industry Standard Identifier: JRD-8X1X180g
• Model: JRD-8X1X180g

About this item

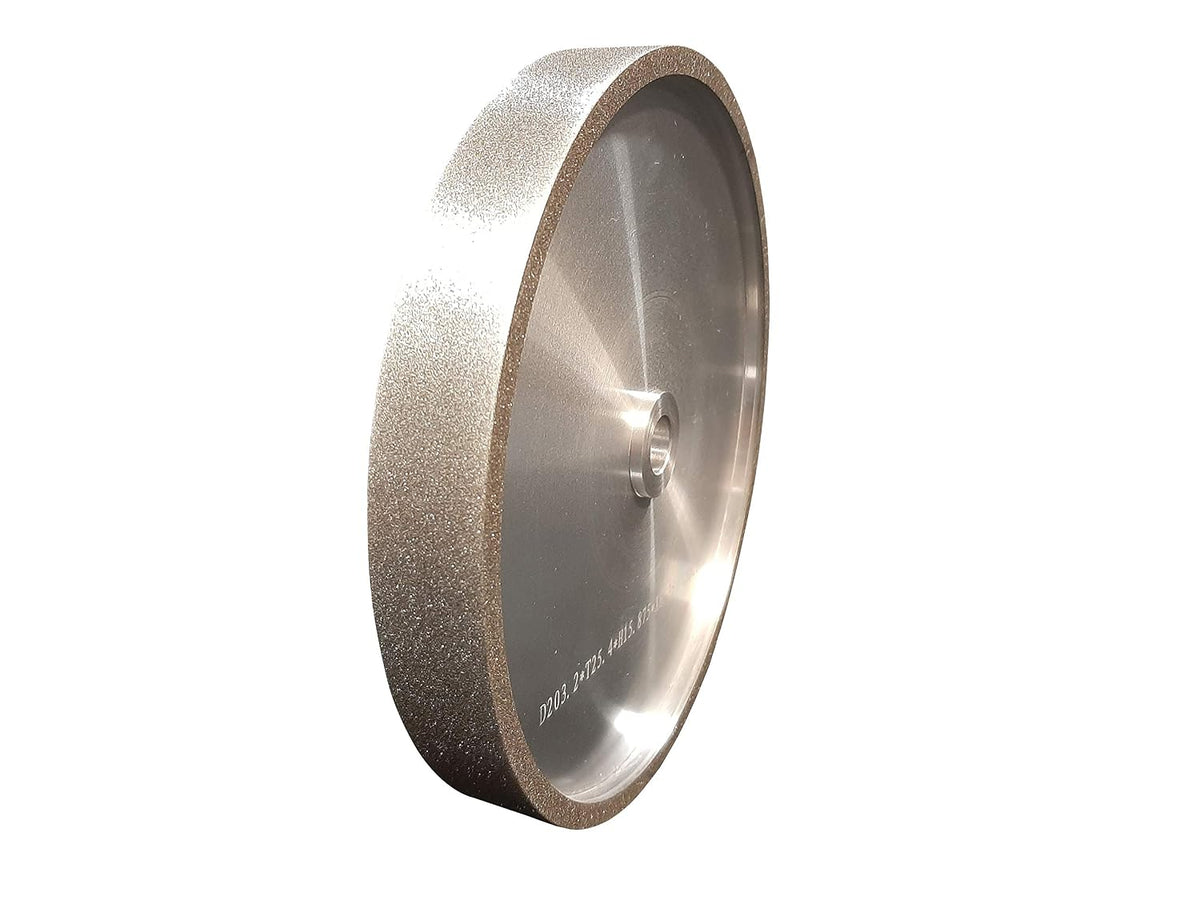

• Precision Made Solid Aluminum body 8" dia by 1/4" with CBN on the face and 1/4" sides of the wheel. For 5/8 inch shaft.
• Designed for use with slow speed 8 inch bench type grinders; 1800 RPM or 3600RPM
• Will never need dressing, or truing. Wheel Diameter stays the same, so you will not need to be keep adjusting your jig. Now includes two precision ground, parallel surface washers.
• Use with High Speed Steel (HSS)Tools Only
• Note: These wheels are made with very tight tolerance's. The arbor hole is precisely cut to .6254 inches. The shaft on many grinding motors are not as precise, and may be slightly larger then .625 inch. This will cause an interference fit. A little bit of emery cloth on the shaft will help get the wheel on.
